Product Overview

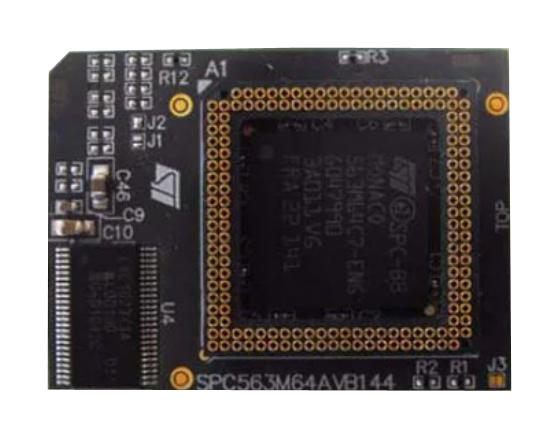

SPC563M64AVB176 is a SPC563M64 microcontroller family calibration and emulation system consists of a SPC563M64AVB176 board (Calibration System for SPC563M64 mcu in QFP176 target package), a calibration RAM board SPC56XVTOP-M and a POLYPODTQ144 Poly-Pod which plugs directly into the motherboard. The vertical adapter is designed to substitute the device on an ECU version used during engine calibration. All VertiCal hardware is designed to support a standardized tool connector, allowing a variety of calibration and debug hardware to be connected and reused.
- VertiCal interconnect supported by calibration tool developers, ensuring flexibility in tool choice
- On-board latch providing a 16bit demux bus interface from SPC563M64 16-bit mux calibration interface
- Support for Nexus-based debug tools even if application PCB does not include Nexus connector
- Nexus functionality with 12 Message Data Out (MDO) signals
- Allows system calibration without impacting standard MCU I/O resources
- Allows system calibration regardless of availability of standard MCU external bus
Product details
| IC Product Type |
Calibration / Emulation System |
| Core Architecture |
Power Architecture |
| Kit Contents |
Vertical Base Board SPC563M64 |
| Product Range |
- |
| Silicon Family Name |
SPC5 |
| Core Sub-Architecture |
e200z335 |
| Features |
Vertical Adapter Designed to Substitute the Device on an ECU Version Used During Engine Calibration |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
SPC563M64AVB176 |
| Quantity |
Each |
| Technical Data Sheet (56.28KB) EN |
View or download |
