Description
Product Overview

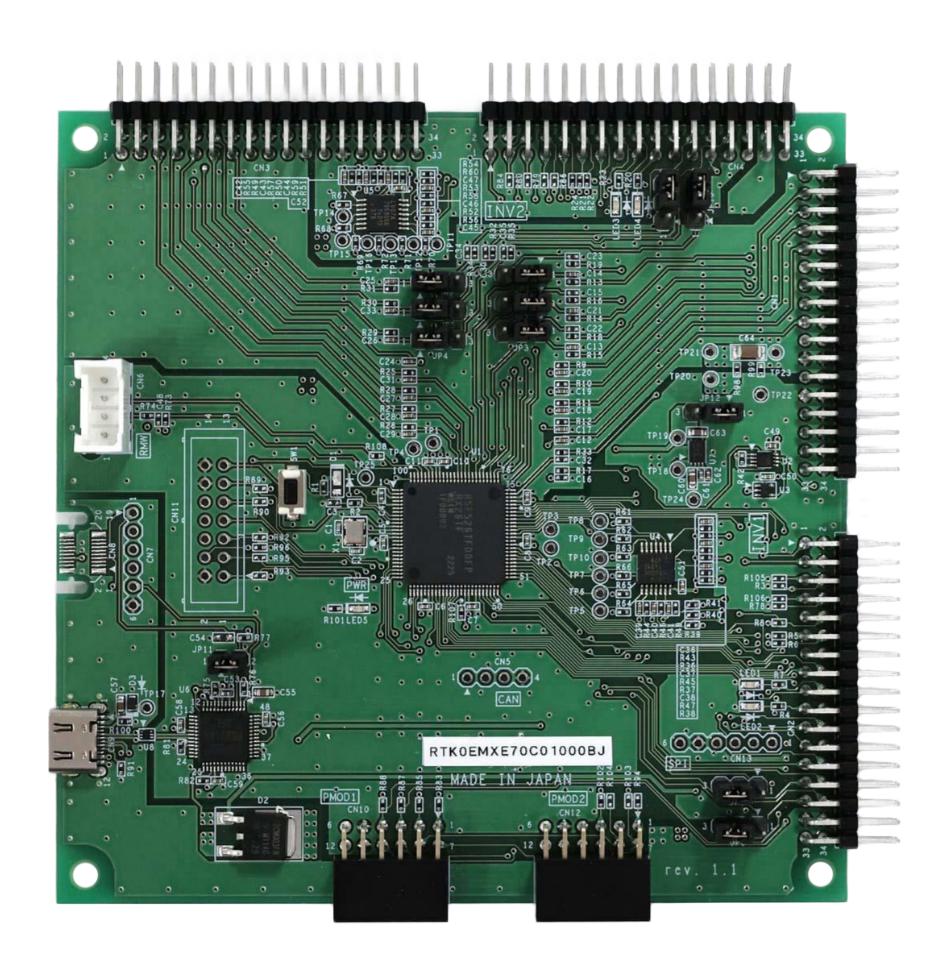

RTK0EMXE70C01000BJ is a MCB-RX26T Type B /CPU board for RX26T MCU group. This product is a CPU board for motor control equipped with RX26T. Motor control using RX26T can be easily realized by using it in combination with a supported inverter board. By using a supported communication board, the CPU board can be electrically isolated from the PC for safe motor control evaluation and debugging.
- Compatible with Renesas Motor Workbench, a motor control development support tool
- Equipped with on-board debugger circuit
- RX26T with Trusted Secure IP (TSIP-Lite)
- 120MHz CPU maximum operating frequency
- R5F526TFDDFP: 32-bit bit count, 100 pin LFQFP, 512KB ROM
- MCU input clock: 10MHz (generate with external crystal oscillator)
- Connector: inverter board connector, USB connector for E2 OB
- SCI connector for Renesas Motor Workbench communication, through hole for CAN communication
- Connector: through hole for SPI communication, PMOD connectors
- Board size (Wx L): 109 x109mm, MCU reset switch, user-controllable LED x4, power LED x1
Contents
CPU Board (RTK0EMXE70C01000BJ) x1, USB cable, Screw x4, Standoff x4.
Product details
| Application Sub Type | Motor Control |
| Kit Application Type | Power Management - Motor Control |
| Kit Contents | CPU Board R5F526TFDDFP, USB Cable, Screw x 4, Standoff x 4 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Manufacturer | Renesas |
| Silicon Core Number | R5F526TFDDFP |
| Product Range | - |
Other details
| Brand | RENESAS |
| Part Number | RTK0EMXE70C01000BJ |
| Quantity | Each |
| EOL Notices (221.15KB) EN | View or download |
