RENESAS RTK7FPA6T3S00001BE Fast Prototyping Board, R7FA6T3BB3CFM, 32bit, RA Family, ARM, Cortex-M33

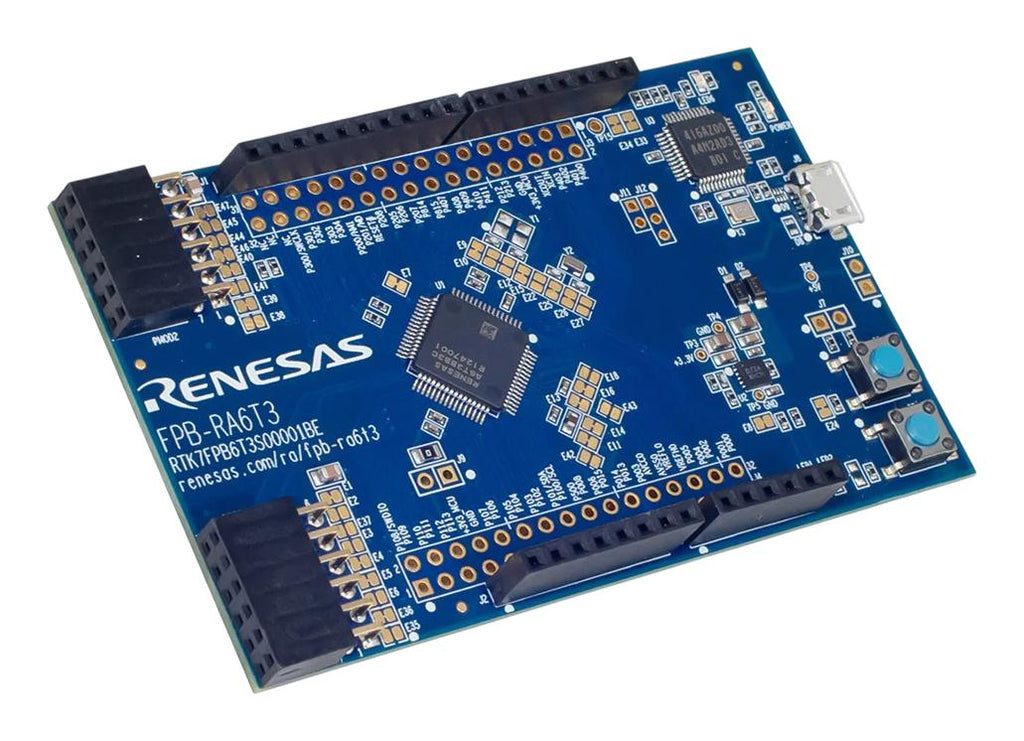

RTK7FPA6T3S00001BE is a FPB-RA6T3 fast prototyping board. It provides an entry point for evaluation, prototyping and development with the RA6T3 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for designing your own applications without needing to make further investments in tools. This product includes through-holes for pin headers that allow access to all MCU signal pins, allowing easy prototyping with a breadboard.

• R7FA6T3BB3CFM in 64-pin LQFP package
• On-chip memory: 256KB code flash, 40KB SRAM, 4KB data flash memory
• Board size: 53mm × 85mm, thickness: 1.6mm
• Power-supply voltage board supply: 5V. VCC: 3.3V. MCU operation voltage range 2.7V to 3.6V
• Power-supply circuit: USB connector: VBUS (5V input), VBUS is converted to 3.3V by LDO
• Push switch: reset switch x 1, user switch x 1
• LED power indicator: green x 1, user: green x 2, on-board debugger ACT LED: yellow x 1
• USB connector: micro USB type-B and Pmod™ connector: angle type, 12-pin x 2
• Arduino™ connector: 6-pin x1, 8-pin x2, 10-pin x1 (interface is compatible with Arduino™ Uno R3/R4)
• 32 pins x 2 MCU header and J-Link on-board programmer/debugger emulator

Contents

FPB-RA6T3 fast prototyping board (RTK7FPA6T3S00001BE), Quick start guide.
