Product Overview

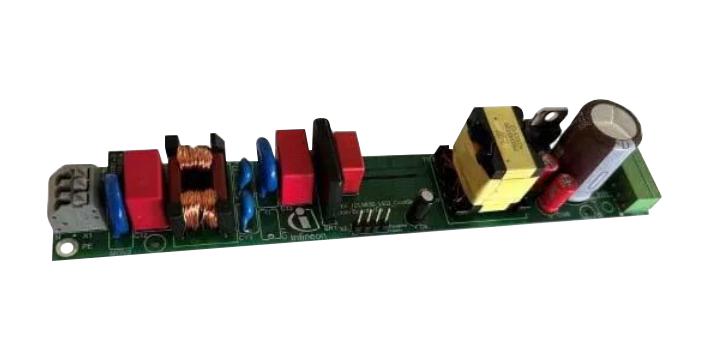

EVALICL8830GANTOBO1 is an evaluation board with the ICL8830 high-frequency single-stage PFC flyback controller and CoolGaN™ transistor in DPAK, optimized for high-frequency LED drivers and battery chargers. This board is designed for efficient power conversion and it supports switching frequencies above 300kHz, demonstrating the controller's capability to operate with GaN technology. Suitable for battery chargers and LED lighting system design applications.
- Optimized for minimal power losses
- Board is suitable for developing high-performance LED drivers and battery chargers
- High-frequency operation for size reduction
- Reduced power losses with GaN
- High efficiency at high switching frequency
Product details
| Device Topology |
Flyback |
| Output Current |
- |
| Input Voltage Min |
8.1V |
| Core Chip |
ICL8830 |
| Kit Contents |
Evaluation Board ICL8830 |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1Outputs |
| Output Voltage |
- |
| Input Voltage Max |
23V |
| Dimming Control Type |
PWM |
| Product Range |
- |
Other details
| Brand |
INFINEON |
| Part Number |
EVALICL8830GANTOBO1 |
| Quantity |
Each |
| Technical Data Sheet (770.96KB) EN |
View or download |
