Product Overview
ILT-AS-500-22-C1 is an ILT linear sensor. It is a durable, high-accuracy linear position sensor specifically designed for use in applications where long life and cost are important. The ILT linear sensor is particularly suitable for OEM customers who require good performance in hard environments such as industrial and agricultural machinery or special vehicle construction. Performance, repeatability and stability are outstanding over a large temperature range. The sensor is housed inside an aluminium body, which offers good protection for this rugged sensor.
- Robust design, long life due to inductive technology, excellent IP rating
- Ideal for use in vehicles and machines in harsh environments
- Rod ends, steel installation
- 4 to 20mA (2 wire) output signal
- Electrical connection: M12 connector with mating connector
- 500mm stroke
- Supply voltage of +24V DC nom. (18- 28V)
- Temperature rating range from -40 to 100°C
- IP67 connector, IP67 / IP69K cable sealing
Product details
| Enclosure Design |
Cylindrical |
| Operating Wiper Current (max) |
- |
| Life Expectancy (Cycles) |
- |
| Housing Material |
Aluminium |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Input Voltage |
24VDC |
| Potentiometer Resistance |
- |
| Linearity |
± 0.25% |
| Operating Temperature Min |
-40°C |
| Product Range |
ILT Series |
Other details
| Brand |
VARIOHM GROUP |
| Part Number |
ILT-AS-500-22-C1 |
| Quantity |
Each |
| Technical Data Sheet (177.48KB) EN |
View or download |

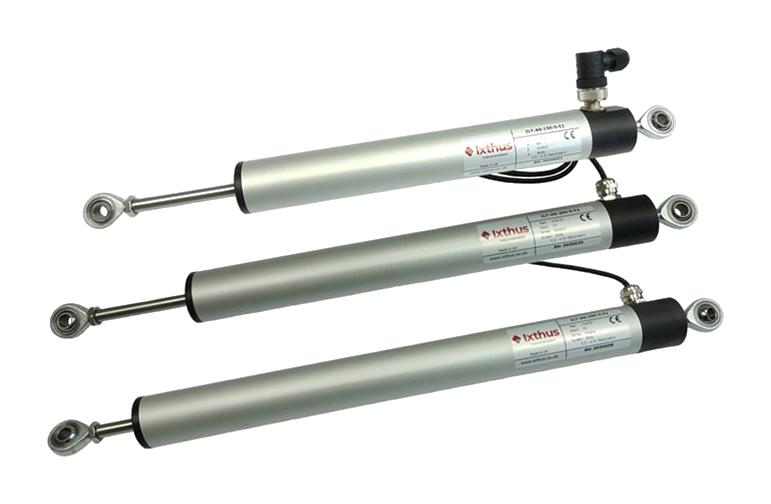

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
