Product Overview

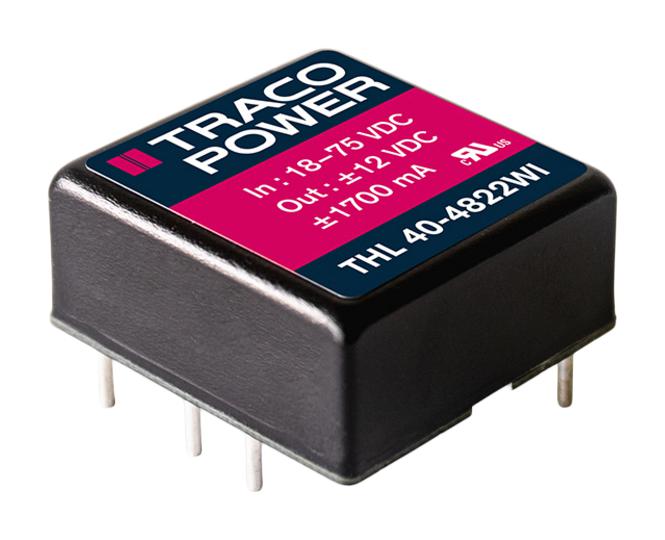

THL 40-4822WI is a THL 40WI series DC/DC converter. With the focus on combining cost efficiency and quality, this isolated high-performance DC/DC converter series is suitable for many different applications. The series comes in an encapsulated, shielded 1” x 1” x 0.43” metal package and offers integrated remote on/off and trim functions. It has a wide 4:1 input voltage range and precisely regulated, isolated outputs. The series meets the latest IT safety certifications (UL 62368-1) and is suitable for use in mobile equipment, instrumentation, distributed power architectures in communication and industrial electronics and everywhere where cost efficiency and quality are critical factors.
- Operating temperature range from -40 to +65°C without derating
- 1500V DC I/O-isolation
- Protection against overload, overvoltage and short circuit
- 3-year product warranty
- 18 - 75V DC (48V DC nom) input voltage range
- ±12V DC nominal output voltage at 1700mA Imax
- 91% typical efficiency
- Housing material: Alu alloy, black anodized coating
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
4:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
1.7A |
| Output Current - Output 2 |
1.7A |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
11.5mm |
| Input Voltage DC Min |
18V |
| Product Range |
THL 40WI Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
40W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
-12V |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
48V |
| Width |
25.4mm |
| Depth |
25.4mm |
| Input Voltage DC Max |
75V |
| SVHC |
Lead (04-Feb-2026) |
Other details
| Brand |
TRACO POWER |
| Part Number |
THL 40-4822WI |
| Quantity |
Each |
| Technical Data Sheet (939.81KB) EN |
View or download |
