Product Overview

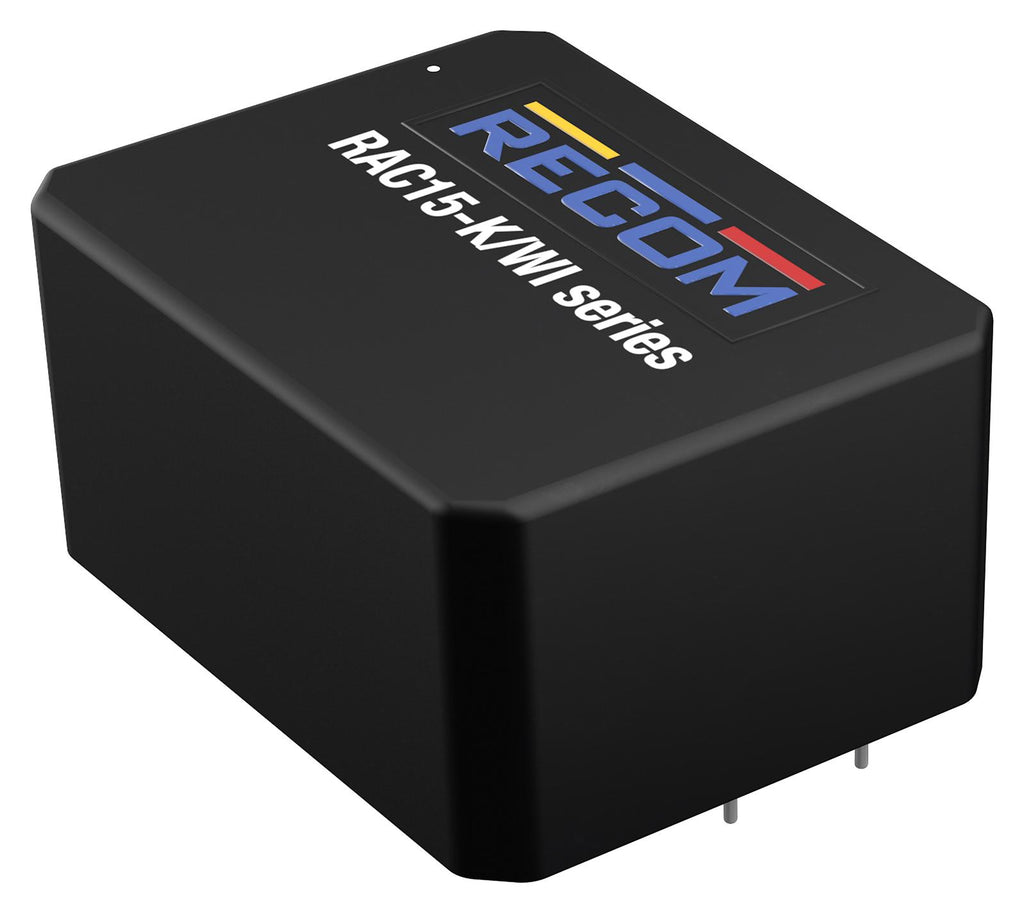

RAC15-24SK/WI is a RAC15-K/WI series AC/DC power supply. The sealed module is in a compact size of 1.5 x 2 inches with the industry standard pinning “P12” enabling integration via solder mounting or via flexible cable connections. It is certified for operation at altitudes up to 3000m under OVC III or up to 5000m under OVC II requirements. The power supply meets strict safety standards according to UL and IEC certifications of industrial and household standards. In addition, the integrated EMI EN55032 “B” filter ensures minimal electromagnetic interference for compliant integration in a wide variety of applications. Typical applications include building and home automation, datacom and telecom, industrial and automation, infrastructure, intralogistics, E-mobility, test and measurement, recom pinning identifier.
- Ultra low input: AC: 18-264V or DC: 18-375V
- Print mount or flying wire connections
- Operating temperature ratings from -40°C to 85°C
- 3 year warranty
- 24V DC nominal output voltage
- 625mA rated output current
- 84% typical efficiency
- 15W continuous output power
- Dimension (LxWxH): 52.5 x 40.0 x 25.5mm
- Plastic, (UL94 V-0) case/baseplate
Product details
| Power Supply Applications |
ITE, Industrial & Household |
| Output Power Max |
15W |
| Output Current - Output 1 |
625mA |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Width |
40mm |
| Depth |
52.5mm |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Power Supply Output Type |
Fixed |
| Height |
25.5mm |
| Product Range |
RAC15-K/WI Series |
Other details
| Brand |
RECOM POWER |
| Part Number |
RAC15-24SK/WI |
| Quantity |
Each |
| Technical Data Sheet (58.00B) EN |
View or download |
