Description
Product Overview
EVAL-ADUC7026QSPZ is an ADuC7026 MicroConverter QuickStart Plus Development System. This development system for evaluation of the ADuC7026, fully integrated 1MSPS, 12-bit data acquisition systems incorporating high performance multichannel ADCs, 16-bit/32-bit MCUs, and flash/EE memory on a single chip.
- Full featured evaluation system for the ADuC7026
- 2-layer PCB (4” × 5” form factor)
- 9V power supply regulated to 3.3V on board
- 4-pin UART header to connect to RS-232 interface cable and 20-pin standard JTAG connector
- Demonstration circuit: 32.768kHz watch crystal to drive the PLL clock
- ADR291 2.5V external reference chip and reset/download/IRQ0 push-buttons
- Power indicator/general-purpose LEDs
- Access to all ADC inputs and DAC output from external header
- Surface-mount and through-hole general-purpose prototype area
- External memory and latch footprint
Contents

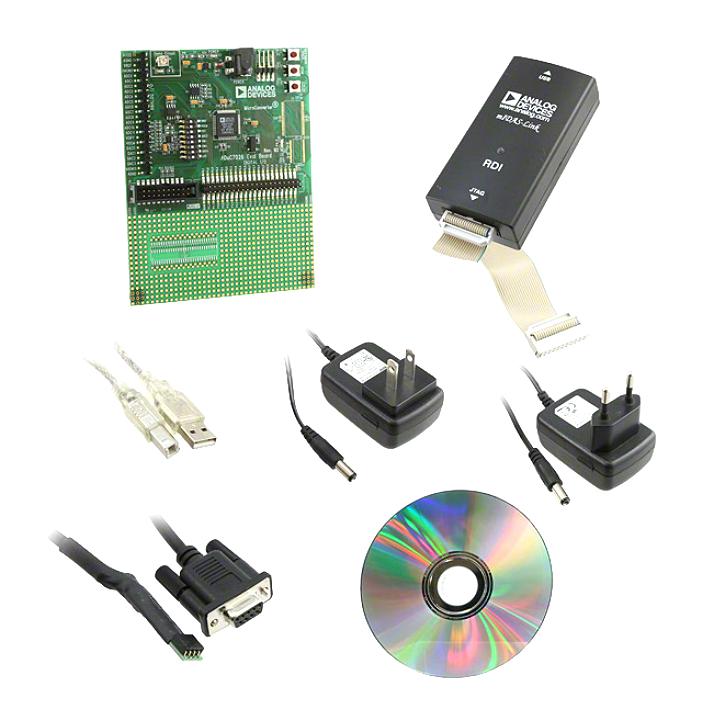

ADuC7026 evaluation board, mIDAS-Link JTAG emulator, USB cable, Serial download cable, International power supply, CD containing (evaluation software, ADuC7026 data sheet).
Product details
| Silicon Manufacturer | Analog Devices |
| Silicon Family Name | ADuC70xx |
| Core Sub-Architecture | ARM7TDMI |
| Kit Contents | Evaluation Board ADuC7026, JTAG Emulator, USB & Serial Cables, Power Supply, CD |
| SVHC | No SVHC (04-Feb-2026) |
| No. of Bits | 16 / 32bit |
| Core Architecture | ARM |
| Silicon Core Number | ADuC7026 |
| Product Range | - |
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-ADUC7026QSPZ |
| Quantity | Each |
| Technical Data Sheet (92.00B) EN | View or download |
