Product Overview

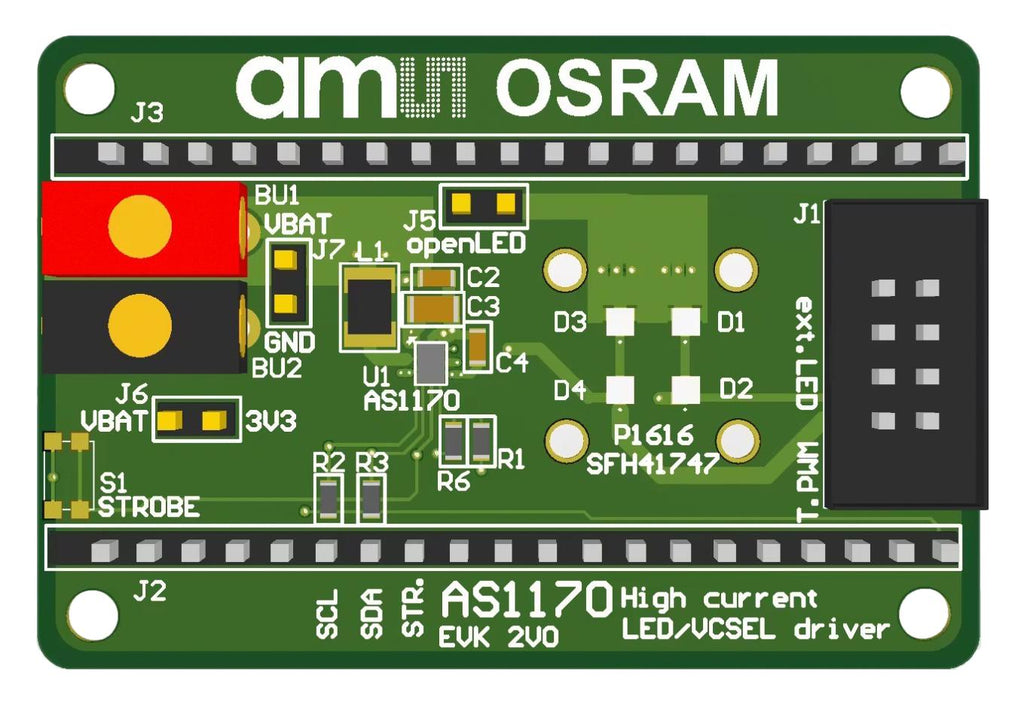

AS1170_WL_EVM_EB is an AS1170 evaluation kit which is a platform to evaluate the AS1170 2-channel, high current LED/VCSEL driver. It includes a PC graphical user interface Software (GUI) and an ESP32 micro controller board which provides access to the driver configuration. The EVK is assembled with tiny SFH41747 IR LEDs with P1616 PCB footprint. In addition to the default LED configuration a break-out board is included to enable testing of different LED footprints such as OSLON black, SYNIOS P2720 and other ams OSRAM LED or VCSEL types.
Product details
| Device Topology |
Boost (Step Up) |
| Output Current |
2A |
| Input Voltage Min |
2.7V |
| Core Chip |
AS1170 |
| Kit Contents |
Evaluation Board AS1170 |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
2Outputs |
| Output Voltage |
5.5V |
| Input Voltage Max |
4.4V |
| Dimming Control Type |
PWM |
| Product Range |
- |
Other details
| Brand |
AMS OSRAM GROUP |
| Part Number |
AS1170_WL_EVM_EB |
| Quantity |
Each |
| User Manual (82.00B) EN |
View or download |
