Description
Product Overview

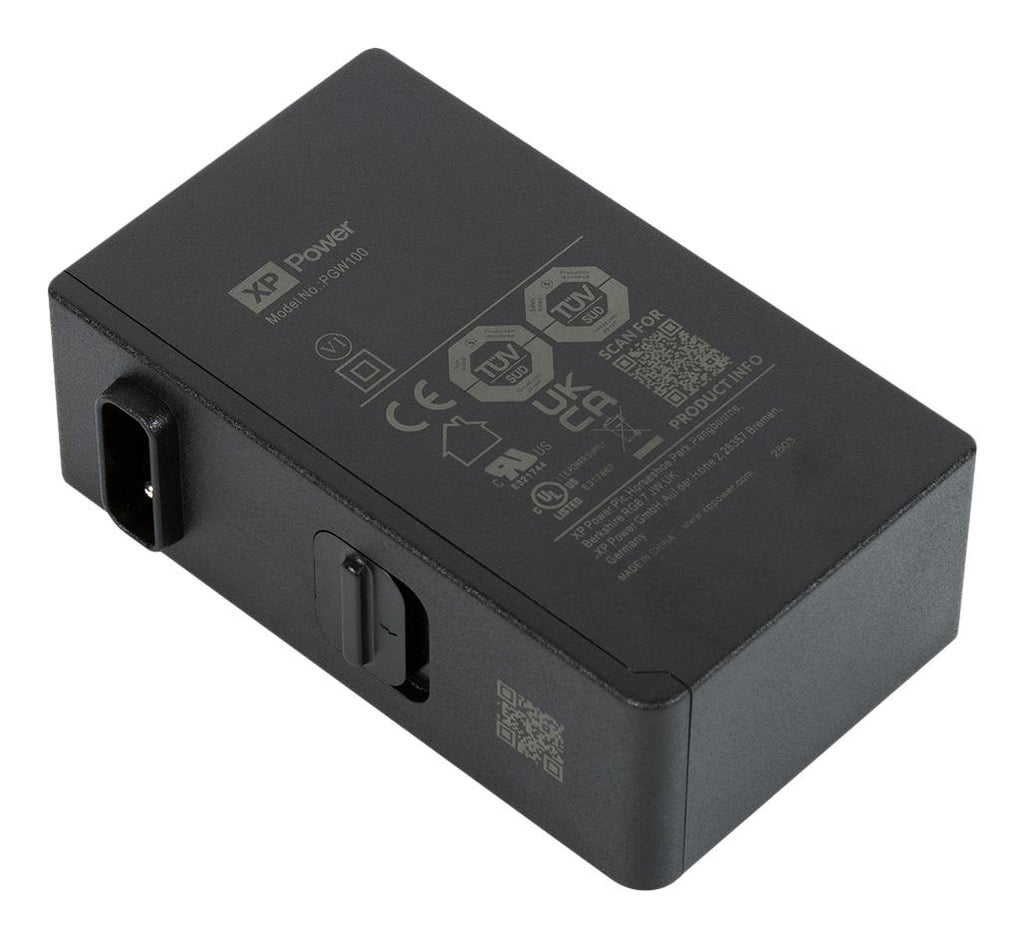

PGW100PS20-I-BB is a PGW100 series AC-DC power supply. The PGW100 series of external wall mount AC-DC power supply conforms to the Power Delivery protocol with outputs with auto-selected based on the system’s charging requirement. Its Class II construction, gasketed design and reinforced isolation provide enhanced safety in medical devices, instrumentation and household appliances. Worldwide medical and ITE safety agency approvals, low leakage currents, compact Gallium-Nitride (GaN) based design, wide 80-264V AC input for universal use, energy efficiency level VI (level VII ready) and support for multiple fast charging protocols, make the PGW100 ideal for a wide range of industrial and BF-rated medical applications.
- Output voltages (auto-selected by load): 5.0V/9.0V/12.0V/15.0V/20.0V
- Output currents: 3.0A/3.0A/3.0A/3.0A/5.0A
- Output power:15.0W/26.0W/36.0W/45.0W/100.0W
- Total regulation of ±5%
- Efficiency: 82.0%/86.8%/87.5%/88.0%/89.0%
- Meets USB PD 3.0 & QC4.0+ fast charging protocol, class B conducted & radiated emissions
- IP22 environmental rating, less than 0.15W standby power
- Low earth leakage current
- 0 to +60°C operation temperature, 3 year warranty
- dimension: 97.0 x 57.0 x 34mm
Notes
Plugs are ordered separately.
Product details
| Power Supply Applications | ITE, Industrial & Medical |
| Output Power Max | 100W |
| Output Current - Output 1 | 3A |
| Output Current - Output 2 | 3A |
| Output Voltage - Output 3 | 20V |
| Power Supply Output Type | - |
| Product Range | PGW100 Series |
| SVHC | No SVHC (25-Jun-2025) |
| No. of Outputs | 1 Output |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | 12V |
| Output Connector | USB Type C |
| Output Current - Output 3 | 5A |
| Input Voltage VAC | 80V AC to 264V AC |
| Plug Type | Mains Plug Sold Separately |
Other details
| Brand | XP POWER |
| Part Number | PGW100PS20-I-BB |
| Quantity | Each |
| Technical Data Sheet (60.00B) EN | View or download |
