Product Overview

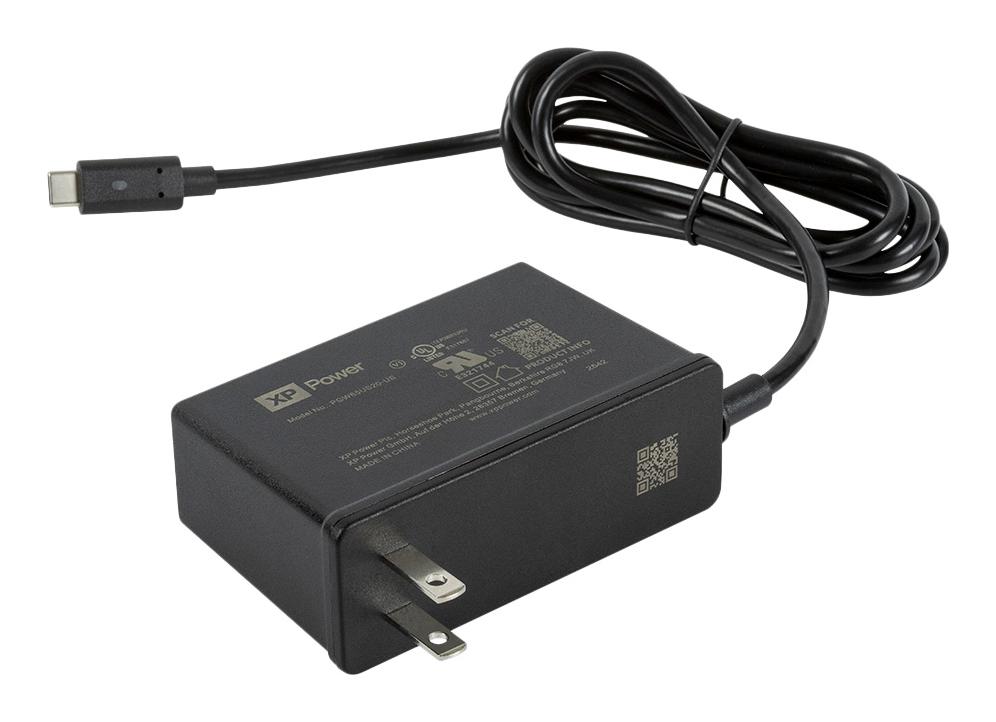

PGW65US20-US-BB is a PGW65 series external wall mount AC-DC power supply. It conforms to the Power Delivery protocol with output based on the system’s charging requirement. Its Class II construction, gasketed design, and reinforced isolation provide enhanced safety in medical devices and household appliances. Worldwide medical and ITE safety agency approvals, low leakage currents, compact Gallium-Nitride (GaN) based design, wide 80-264V AC input for universal use, energy efficiency level VI (level VII ready) and support for multiple fast charging protocols, make the PGW65 ideal for a wide range of industrial and BF-rated medical applications. Typical applications include home healthcare, technology, and instrumentation.
- Energy efficiency level VI (level VII ready) and EU2019/1782, meets USB PD 3.0/QC3.0 protocol
- IP22 environmental rating, 3 year warranty
- Low earth leakage current
- <0.15W standby power, class B conducted & radiated emissions
- 0 to +60°C operation temperature
- Dimensions: 90.5 x 58.5 x 33.5mm
- US plug type
- 65W output power
- Switching frequency: 60kHz typical (main converter (varies with load))
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
65W |
| Output Current - Output 1 |
3A |
| Output Current - Output 2 |
3A |
| Output Voltage - Output 3 |
20V |
| Power Supply Output Type |
- |
| Product Range |
PGW65 Series |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
12V |
| Output Connector |
USB Type C |
| Output Current - Output 3 |
3.25A |
| Input Voltage VAC |
80V AC to 264V AC |
| Plug Type |
US |
Other details
| Brand |
XP POWER |
| Part Number |
PGW65US20-US-BB |
| Quantity |
Each |
| Technical Data Sheet (59.00B) EN |
View or download |
