Product Overview

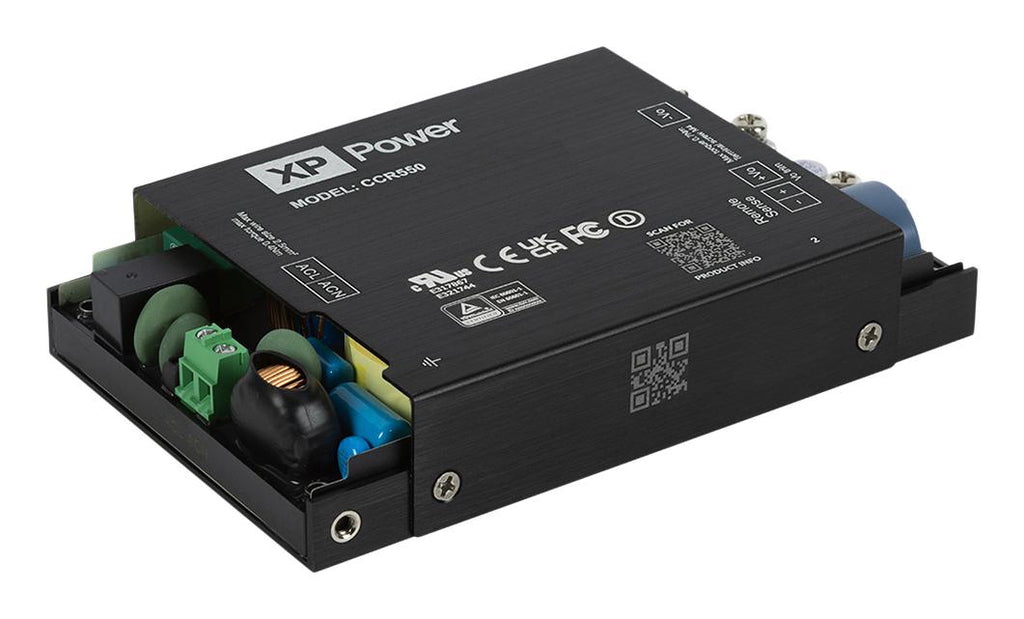

CCR550PS12 is a CCR550 series compact medical AC-DC power supply. It is designed to operate in convection, conduction, and fan cooled applications. It offers high efficiency and high power density in a low 1" profile, baseplate cooled design that ensures effective thermal management and quiet operation for noise sensitive applications. It features class B conducted and radiated emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, the CCR550 is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, robotics, technology and industrial printing.
- Universal, single phase input: 85 to 264V AC
- 3 year warranty
- Dimensions: 129.4 x 83.5 x 25.4mm
- 12.0V output voltage
- Output current: 19.16A convection cooled, 37.50A conduction cooled, 45.83A fan cooled
- 92% efficiency
- Operating temperature: -40 to +80°C
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
230W |
| Output Current - Output 1 |
19.16A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Fixed |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
85V AC to 264V AC |
| Product Range |
CCR550 Series |
Other details
| Brand |
XP POWER |
| Part Number |
CCR550PS12 |
| Quantity |
Each |
| Technical Data Sheet (60.00B) EN |
View or download |
