Product Overview

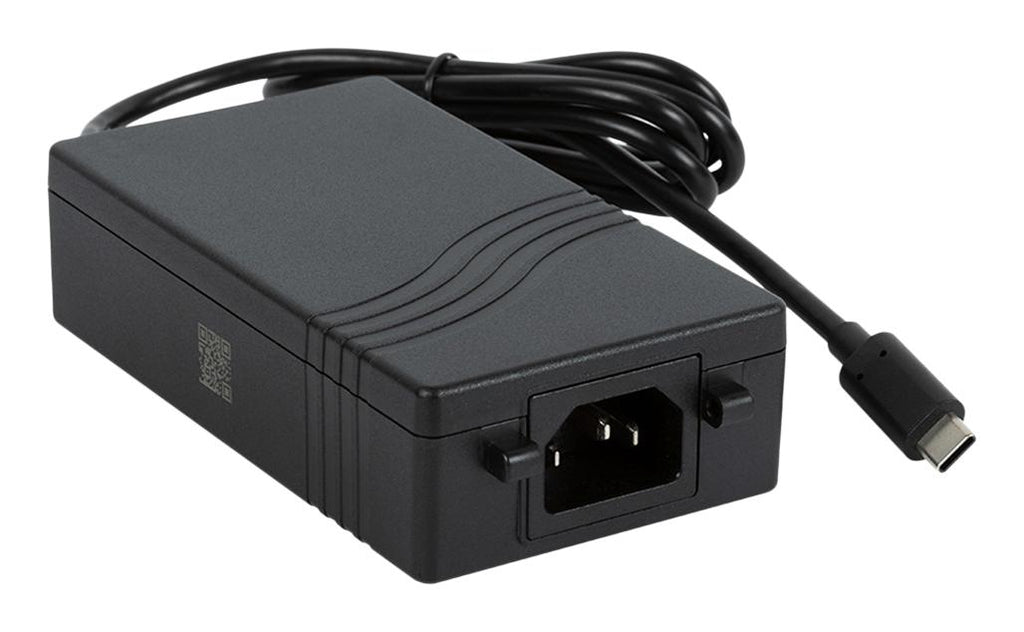

PGD140PS28 is a PGD140 series AC-DC power supply. The PGD140 series of external desktop AC-DC power supply conforms to the power delivery protocol with outputs with auto-selected based on the system’s charging requirement. Worldwide medical and ITE safety agency approvals, low leakage currents, compact Gallium-Nitride (GaN) based design, wide 80-264V AC input for universal use, energy efficiency level VI (level VII ready) and support for multiple fast charging protocols, makes the PGD140 ideal for a wide range of industrial and BF-rated medical applications. Applications include technology and instrumentation.
- Meets USB PD 3.1 & QC4.0+ fast charging protocol
- IP22 environmental rating
- Low earth leakage current, <0.15W standby power
- Class B conducted & radiated emissions
- 0 to +60°C operation, 3 year warranty, dimension is 121 x 65.8 x 32mm
- Output voltages (auto-selected by load): 5.0V/9.0V/12.0V/15.0V/20.0V/28.0V
- Output currents: 3.0A/3.0A/3.0A/3.0A/5.0A/5.0A
- Output power: 15.0W/26.0W/36.0W/45.0W/100.0W/140.0W
- Total regulation of ±5%
- Efficiency: 82.0%/86.8%/87.5%/88.0%/90.0%/92.0%
Product details
| Power Supply Applications |
ITE, Industrial & Medical |
| Output Power Max |
140W |
| Output Current - Output 1 |
3A |
| Output Current - Output 2 |
3A |
| Output Voltage - Output 3 |
28V |
| Power Supply Output Type |
- |
| Product Range |
PGD140 Series |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage - Output 1 |
5V |
| Output Voltage - Output 2 |
15V |
| Output Connector |
- |
| Output Current - Output 3 |
5A |
| Input Voltage VAC |
80V AC to 264V AC |
| Plug Type |
- |
Other details
| Brand |
XP POWER |
| Part Number |
PGD140PS28 |
| Quantity |
Each |
| Technical Data Sheet (60.00B) EN |
View or download |
