Product Overview

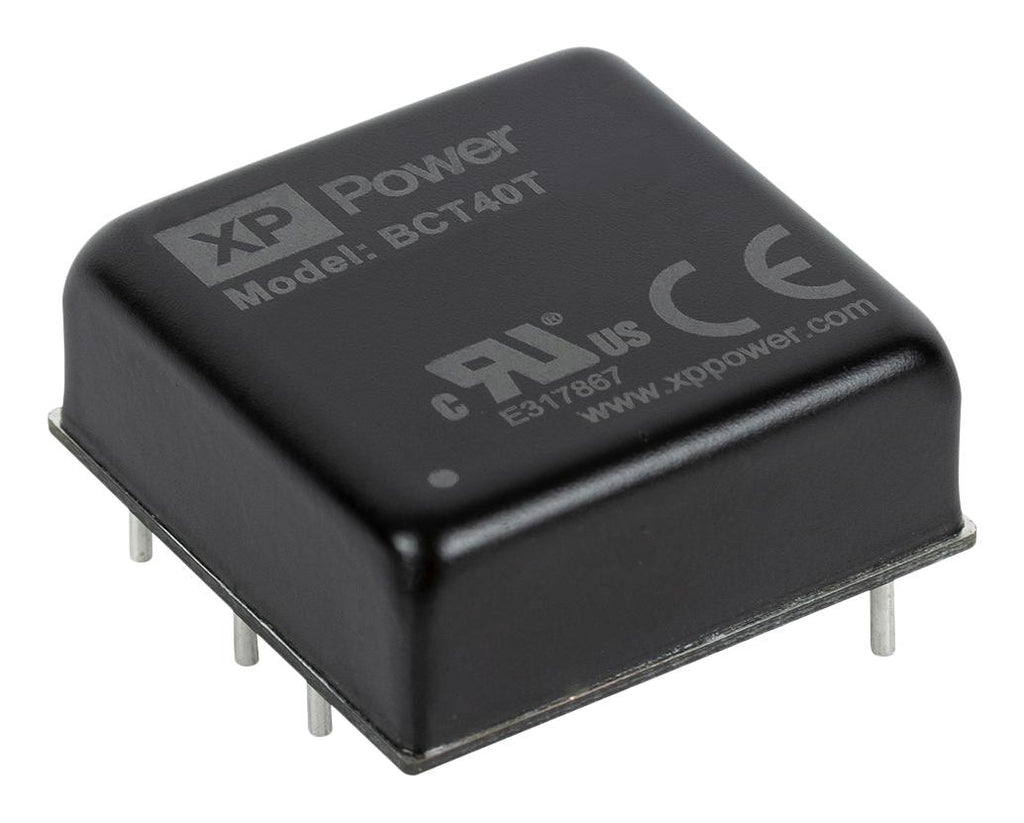

BCT40T24S12 is a BCT40T series PCB mount DC-DC converter. It delivers an output power of 40W in a compact 25.4 x 25.4mm (1” x 1”) metal package. It features a wide 4:1 input, high efficiency, worldwide ITE safety approvals, UVLO, remote on/off and a wide operating temperature range, the BCT40T series is ideal for a wide range of ITE, industrial and communications applications. Typical applications include robotics, technology, instrumentation, and process control.
- 2kV DC isolation
- UL62368-1 and EN62368-1 safety approvals
- Continuous short circuit protection
- Operation temperature: -40°C to +105°C
- 3 year warranty
- Input voltage: 24V (9.0V-36.0V)
- 12V output voltage
- 3.33A output current
- 88% efficiency
- 400kHz switching frequency at full load
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
4:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
3.33A |
| Output Current - Output 2 |
- |
| Isolation Voltage |
2kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
10mm |
| Input Voltage DC Min |
9V |
| Product Range |
BCT40T Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
40W |
| Output Voltage - Output 1 |
12V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
24V |
| Width |
25.4mm |
| Depth |
25.4mm |
| Input Voltage DC Max |
36V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
XP POWER |
| Part Number |
BCT40T24S12 |
| Quantity |
Each |
| Technical Data Sheet (60.00B) EN |
View or download |
