Product Overview

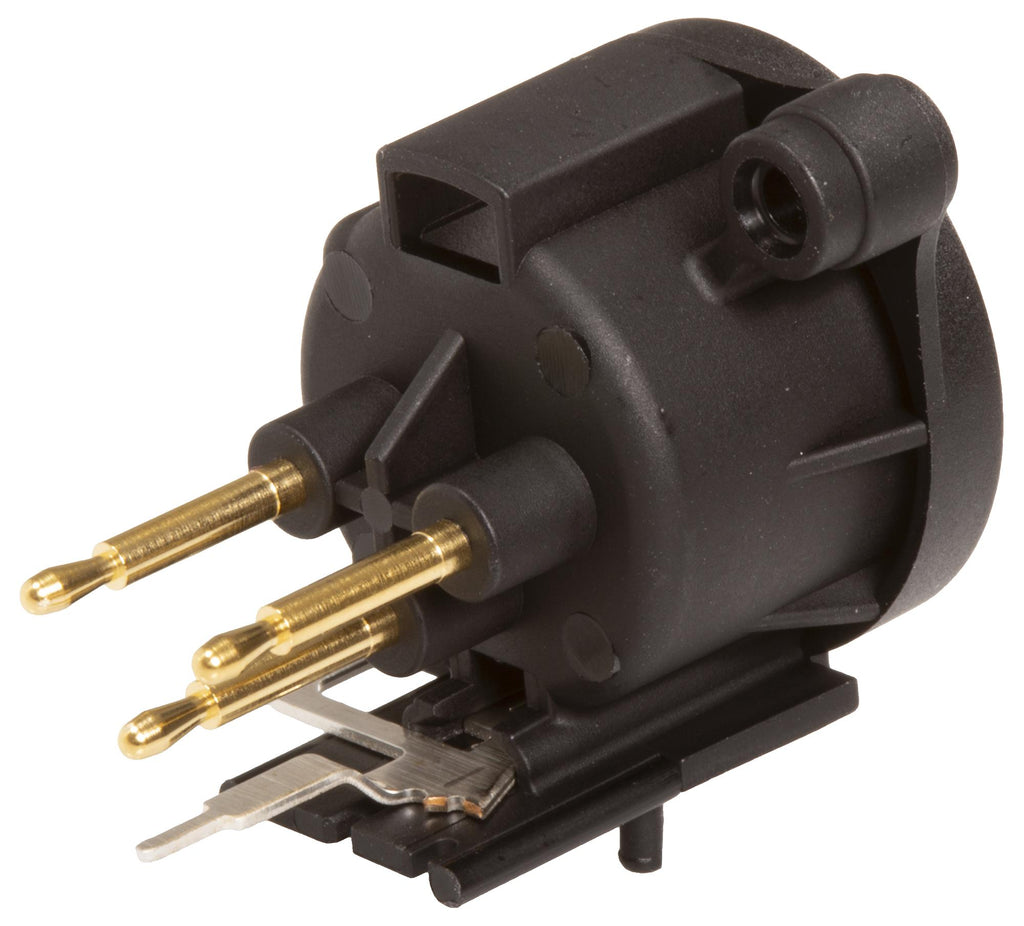

The NC3MAAV is a cost-effective, high-quality XLR connector designed for professional audio and electronic applications. It features a 3-pole male XLR receptacle with a round plastic body, optimized for vertical PCB mounting. This connector includes a separate ground contact for connection to the mating connector shell and front panel, ensuring reliable grounding and shielding.
- Connection Type: XLR, 3-pole male
- Mounting Style: Vertical PCB mount
- Grounding: Separate ground contact to shell and front panel (not connected to Pin 1)
- Contact Design: “Tulip” type contacts for high pressure and durability
- Contact Plating: Selective gold plating for superior conductivity and solderability
- Locking Device: Latch lock for secure mating
- Material: Contacts: Brass and Shell: Polyamide (PA 6.6, 30% glass reinforced)
- Rated current: 6 A
- Rated voltage: <lt/> 50 V
- Contact resistance: ≤ 6 mΩ
- Dielectric strength: 1.5 kV DC
- Insulation resistance: <gt/> 10 GΩ
- Lifetime: <gt/> 1000 mating cycles
- Insertion/Withdrawal force: ≤ 20 N
- Temperature range: -30 °C to +80 °C
- Flammability: UL94 HB
- Protection class: IP40
Product details
| No. of Contacts |
3Contacts |
| Connector Mounting |
Panel PCB Mount |
| Connector Body Material |
Nylon 6.6 (Polyamide 6.6), Glass Reinforced Body |
| SVHC |
No SVHC (25-Jun-2025) |
| Gender |
Plug |
| Contact Plating |
Gold Plated Contacts |
| Product Range |
AA Series |
Other details
| Brand |
NEUTRIK |
| Part Number |
NC3MAAV |
| Quantity |
Each |
| Technical Data Sheet (45.00B) EN |
View or download |
