Product Overview

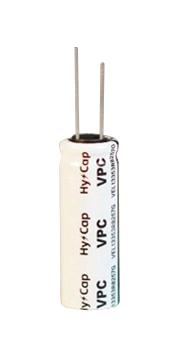

VEL08253R8506G is a VPC (vina pulse capacitor).
- Low self discharge, wide temperature range
- High operating voltage, high capacitance
- 3.8V rated voltage (VR)
- Operating temperature range from -25°C to +70°C
- 50F at 25°C capacitance
- 18mAh capacity at 25°C
- 1µA leakage current at 25°C, 72hr
- 0.15A rated current at 25°C
- 1A pulse charge current at 25°C
- 3 years (no electrical charge, temperature below 25°C) shelf life
Product details
| Voltage(DC) |
3.8V |
| Discharge Current Max |
500mA |
| Capacitance Tolerance |
-10%, +30% |
| Capacitor Mounting |
Through Hole |
| Lead Spacing |
3.5mm |
| Product Height |
25mm |
| Operating Temperature Min |
-25°C |
| Qualification |
- |
| Capacitance |
50F |
| ESR |
0.21ohm |
| Capacitor Case / Package |
- |
| Capacitor Terminals |
Radial Leaded |
| Product Diameter |
8mm |
| Product Range |
VPC Series |
| Operating Temperature Max |
70°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
VINATECH |
| Part Number |
VEL08253R8506G |
| Quantity |
Each |
| Technical Data Sheet (109.00B) EN |
View or download |
