Product Overview
Z36-24 is a Z+ low voltage series programmable power supply suitable for bench or 2U rack mounting. It can operate in either constant current or constant voltage mode and accept a wide 85-265V AC input. The product is backed with a five year warranty.
- Voltage adjust range from 0-36V
- Current adjust range from 0-24A
- Maximum power of 864W
- 5mV ripple (5Hz-1MHz)
- 50mV noise 20MHz BW
- 31mA ripple 5Hz-1MHz
- 84/85% efficiency
- Built-in USB, RS-232 & RS-485 interface
- Metal case, plastic front panel
Product details
| Power Supply Output Type |
Programmable |
| Output Voltage Min |
0VDC |
| Output Current Min |
0A |
| Power Rating |
864W |
| Supply Voltage Max |
265VAC |
| Product Range |
Z+ Series |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Outputs |
1 Output |
| Output Voltage Max |
36VDC |
| Output Current Max |
24A |
| Supply Voltage Min |
85VAC |
| Manufacturer Warranty |
5 Years |
| Plug Type |
- |
Other details

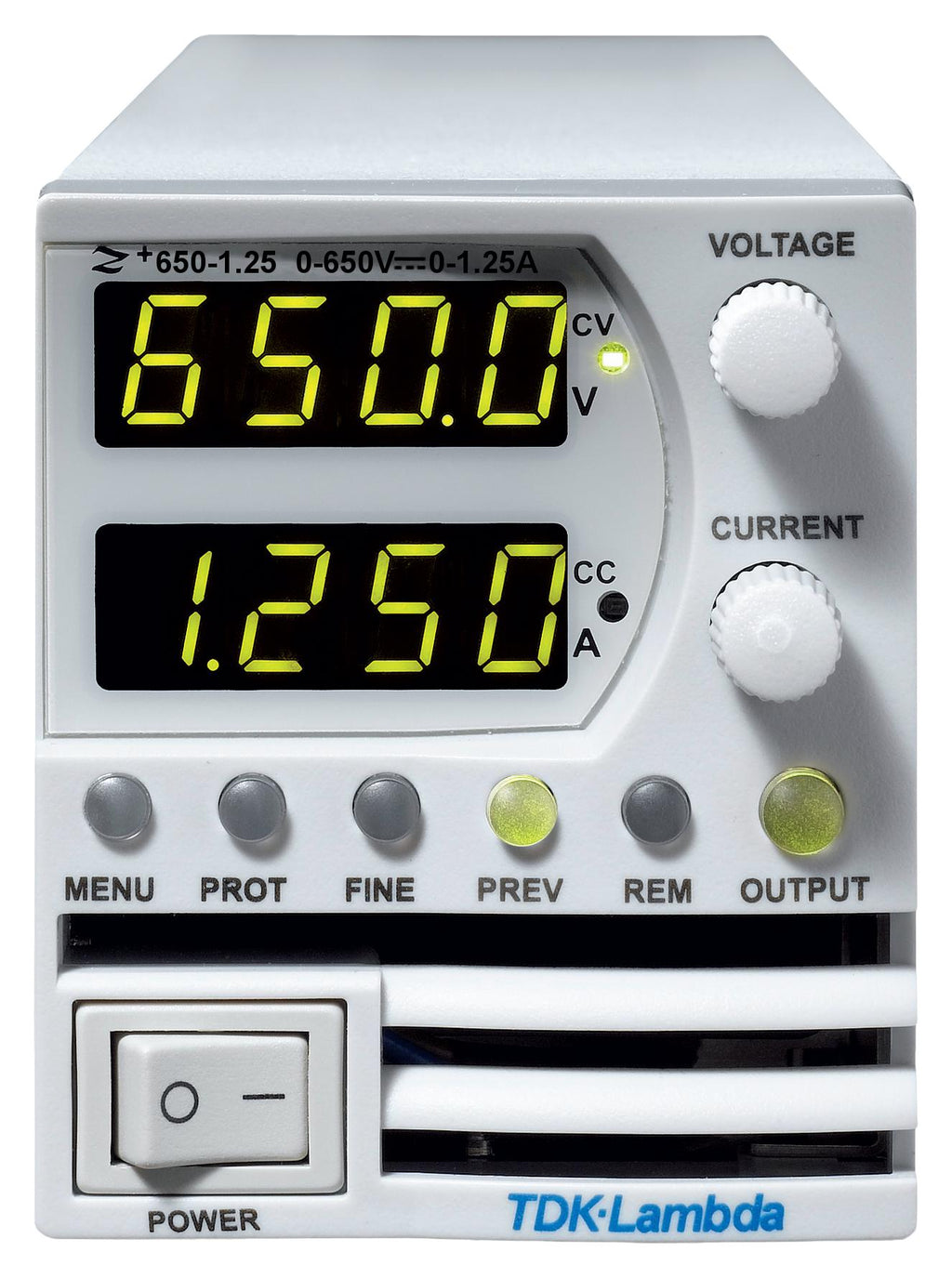

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
