Description
Product Overview

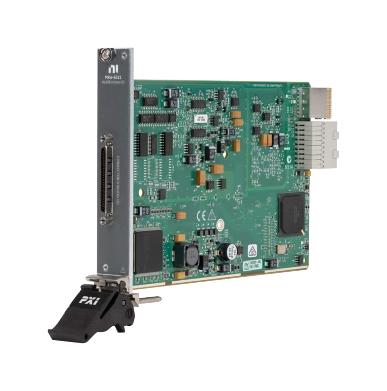

790590-01 is a PXIe-6321, 16 AI (16bit, 250kS/s), 2 AO (900kS/s), 24 DIO PXI multifunction I/O module. The PXIe‑6321 offers analogue I/O, digital I/O, and four 32‑bit counter/timers for PWM, encoder, frequency, event counting, and more. The device delivers high-performance functionality leveraging the high-throughput PCI Express bus and multicore-optimized driver and application software. Onboard NI‑STC3 timing and synchronization technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The PXIe‑6321 is well-suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
Notes
Refer to product catalogue for more info on drivers and cable compatibility for the connectors. 1 year warranty.
Product details
| Product Type | Multifunction I/O Module |
| Resolution | 16bit |
| No. of Output Channels | 2Channels |
| Supply Voltage Range | ± 200mV, ± 1V, ± 5V, ± 10V |
| For Use With | NI PXI Controllers |
| SVHC | No SVHC (25-Jun-2025) |
| Sampling Rate | 250kSPS |
| No. of Input Channels | 16Channels |
| No. of I/O's | 24I/O's |
| Operating Temperature Range | 0°C to +55°C |
| Product Range | PXIe-6321 |
Other details
| Brand | NI / EMERSON |
| Part Number | 790590-01 |
| Quantity | Each |
| Technical Data Sheet (342.59KB) EN | View or download |
| Enhanced Product Overview (1.48MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
