Product Overview

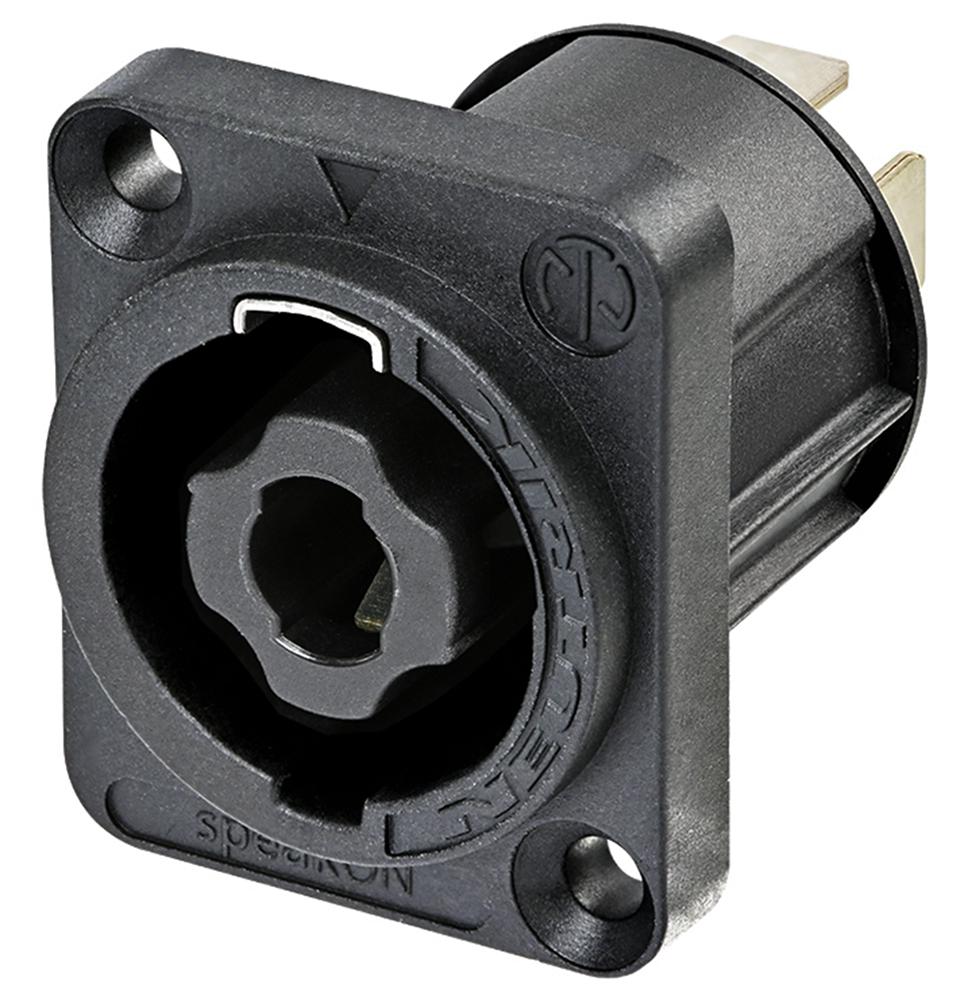

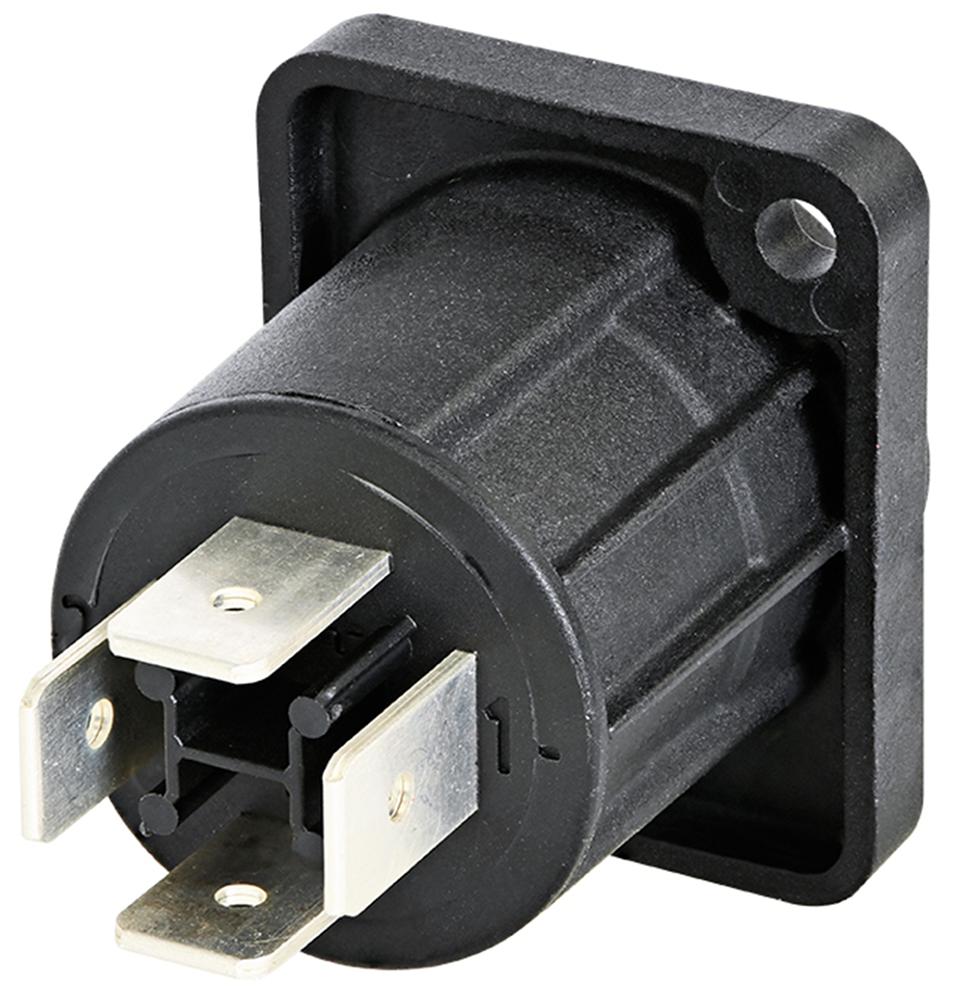

The NLP4MPXX-UC is a 4 Pole male chassis connector for 30A rms continuous. Black D- size flange, countersunk thru holes, 1/4" flat tabs (termination e.g. with Faston tab Tyco part # 41829). This connector is fully compliant to the device standard IEC 62368-1, due to its component certification according to IEC 61984. The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
- IEC 61984 certified, IEC 6236/-1 compliant
- Precise keyway for secure mating with metal insert in locking area
- Glass reinforced V-0 materials – extremely robust and durable
- Airtight design - optimized for speaker applications
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 2.8 kVac
- Insulation resistance: <gt/>0.1 GΩ (after dampheat)
- Rated voltage: 250V AC
Product details
| Product Range |
speakON Series |
| Gender |
Plug |
| Contact Plating |
Silver Plated Contacts |
| SVHC |
No SVHC (25-Jun-2025) |
| No. of Contacts |
4 Contact |
| Connector Mounting |
Panel Mount |
| Connector Body Material |
Nylon 6.6 (Polyamide 6.6) Body |
