Product Overview

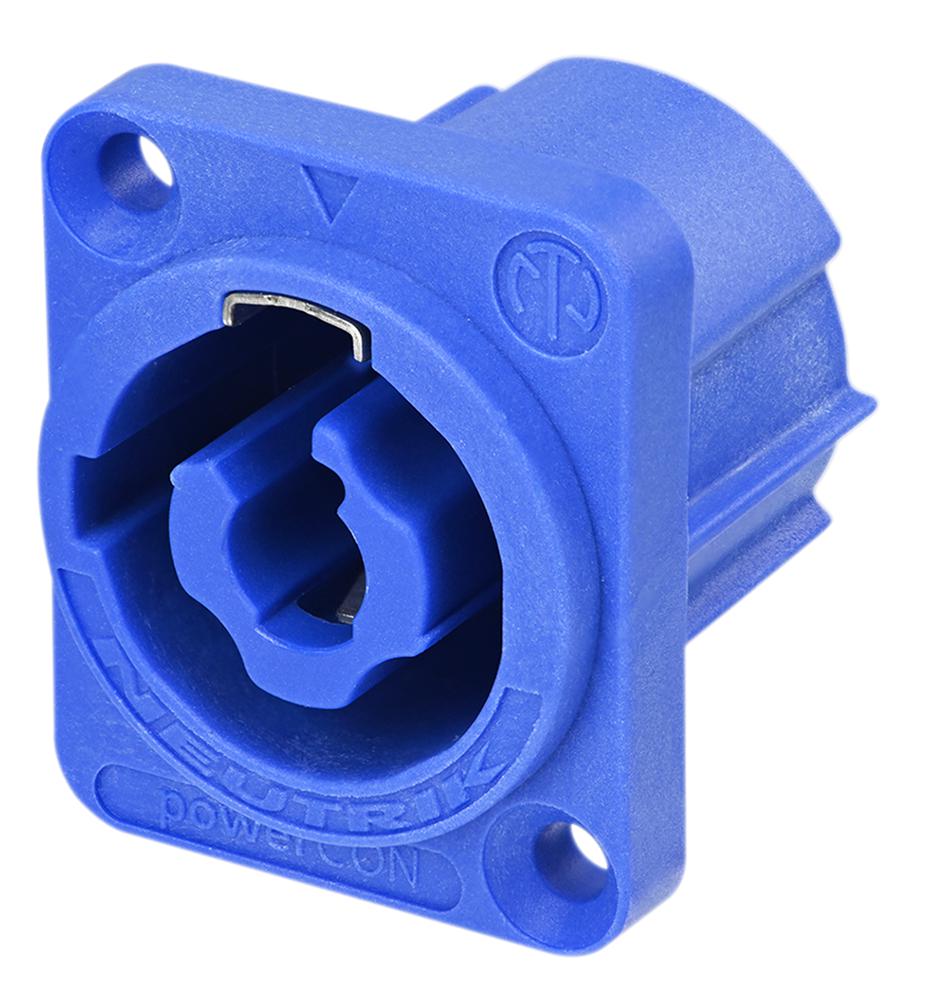

The NAC3MPXXA-WOT from Neutrik is a PowerCon Power In chassis A connector. It replaces appliance couplers wherever a very reliable solution in combination with a locking device is needed in order to guarantee a safe power connection.
- Power-in (blue) a with different keying to avoid the possibility of intermating
- Lockable single phase connector
- 3 contacts for line, neutral and premating safety ground
- Fast and easy twist lock latching system Power In with different keying to avoid the possibilty of intermating
- Certified according to IEC 60320-1 & UL 60320-1
- Certified according to UL-1977, & CAN/CSA-C22.2 No. 182.3
- Extremely robust and reliable
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 4 kVdc / 2.8 kVac
- Insulation resistance: <gt/>10 GΩ (initial)
- Wire size: 2.5mm² / 12 AWG
Product details
| Product Range |
powerCON XX Series |
| Voltage Rating |
250VAC |
| Connector Mounting |
Panel Mount |
| SVHC |
No SVHC (25-Jun-2025) |
| Gender |
Plug |
| Current Rating |
16A |
| Contact Termination Type |
Quick Connect, Solder |
