Product Overview

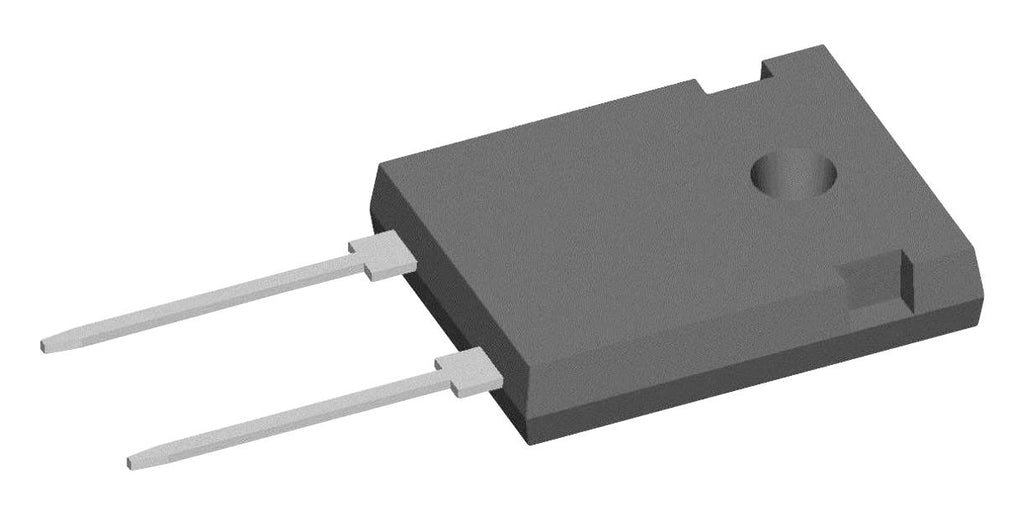

BOURNS PF2472-390RF1 Through Hole Resistor, 390 ohm, Riedon PF2472 Series, 100 W, ± 1%, TO-247, 700 V
Product details
| Resistance |
390ohm |
| Power Rating |
100W |
| Resistor Case / Package |
TO-247 |
| Resistor Technology |
Thick Film |
| Resistor Type |
High Stability |
| Product Length |
16mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Product Range |
Riedon PF2472 Series |
| Resistance Tolerance |
± 1% |
| Voltage Rating |
700V |
| Temperature Coefficient |
± 200ppm/°C |
| Product Diameter |
- |
| Product Width |
4.8mm |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
BOURNS |
| Part Number |
PF2472-390RF1 |
| Quantity |
Each |
| Technical Data Sheet (841.88KB) EN |
View or download |
