Product Overview
MPBXT-12S24NP is a 1W isolated DC/DC converter that offers compact and efficient power conversion in a space-saving 14PIN SMD package, making it ideal for both industrial and ITE applications. This converter is ideal for industrial control systems, communication equipment, household electronics, and other electronic devices, delivering reliable isolated power in a small, efficient, and easily integrable package.
- Single output, unregulated output types for flexible applications
- No-load input current as low as 5mA
- Continuous short-circuit protection for enhanced reliability
- Industry-standard pinout for easy integration
- Wide operating temperature range from -40°C to +105°C
- Safety approvals: UL/cUL/IEC/EN 62368-1 certified, with CB report
- 24V DC output voltage
- 42mA output current
- 85% typical efficiency
- 12V DC input voltage
Product details
| Power Supply Applications |
ITE & Industrial |
| Input Ratio |
- |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
42mA |
| Output Current - Output 2 |
- |
| Isolation Voltage |
1.5kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
6.25mm |
| Input Voltage DC Min |
9.6V |
| Product Range |
MPBXT-NP |
| DC / DC Converter Type |
Surface Mount DIP |
| Output Power Max |
1W |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
12V |
| Width |
7.6mm |
| Depth |
12.7mm |
| Input Voltage DC Max |
14.4V |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MPBXT-12S24NP |
| Quantity |
Each |
| Technical Data Sheet (714.57KB) EN |
View or download |
| Technical Data Sheet (804.40KB) EN |
View or download |

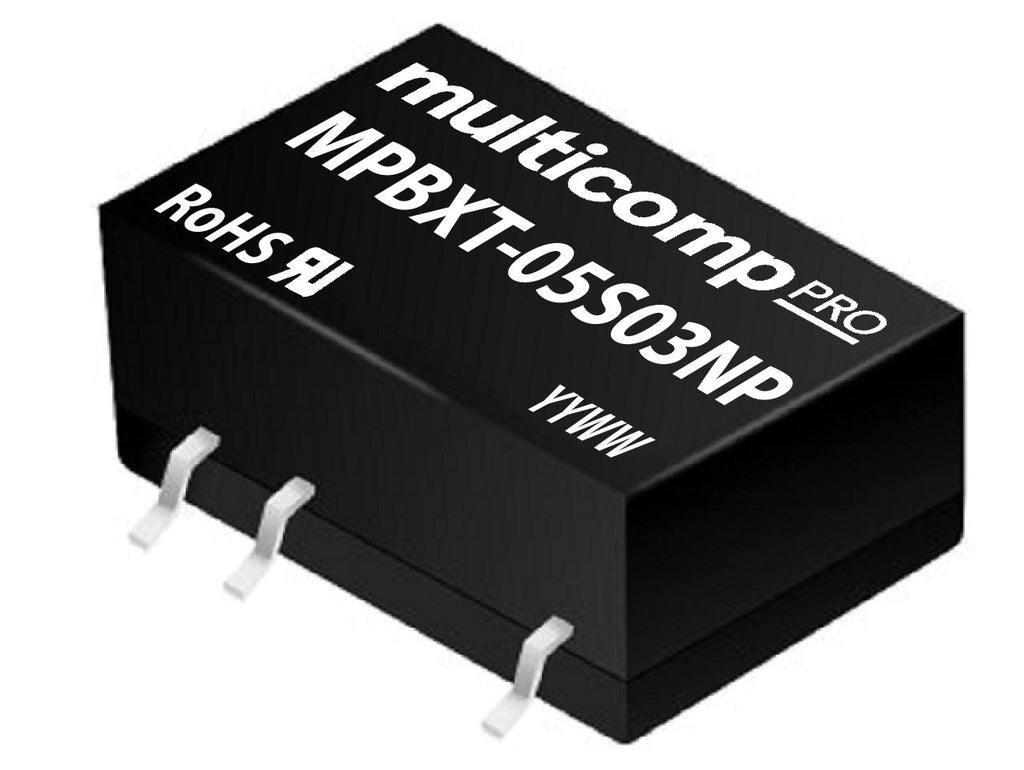

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
