| ₹ 415.27 includes GST and import duties. | |
| B2B customers can avail ₹ 63.33 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

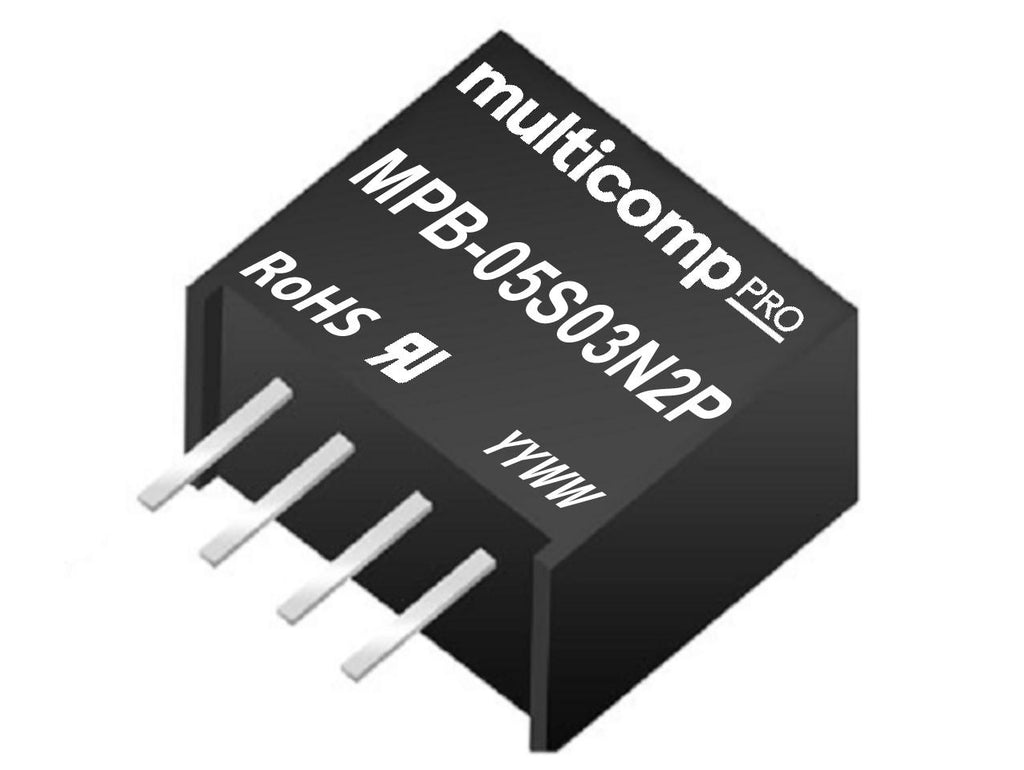

The 1 W Isolated Through-Hole DC/DC Converter series delivers compact, reliable single-output power in a SIP package, making it ideal for industrial, ITE, and embedded applications. Supporting a range of standard DC output voltages, including 3.3 V, 5 V, 9 V, 12 V, 15 V, and 24 V, this series provides flexible solutions for diverse system requirements. This series is perfect for industrial control systems, communication equipment, household electronics, and other electronic devices, offering efficient, isolated, and reliable single-output power in a compact through-hole form factor.
- Compact SIP package for easy through-hole PCB integration
- Single-output configuration for straightforward power supply needs
- High efficiency for reduced power loss and optimized system performance
- Extremely low no-load input current for energy-efficient operation
- Continuous short-circuit protection to ensure safe and reliable operation
- Input-to-output isolation up to 1.5 kV–3 kV DC for enhanced safety
- Wide operating temperature range from –40 °C to +105 °C
- Industry-standard pinout for seamless design integration
- Unregulated output types for versatile applications
- Global safety approvals: UL/cUL, IEC/EN 62368-1, CB report
Applications
Power Supplies, Power Management, Electrical and Electronics, Electronics, Embedded Computing, Consumer Electronics, Industrial Automation, Instrumentation, Control Panels, System Monitoring
Product details
| Power Supply Applications | ITE & Industrial |
| Input Ratio | - |
| No. of Outputs | 1 Output |
| Output Current - Output 1 | 200mA |
| Output Current - Output 2 | - |
| Isolation Voltage | 1.5kV |
| DC / DC Converter Output Type | Fixed |
| Height | 10mm |
| Input Voltage DC Min | 19.2V |
| Product Range | MPB-N2P |
| DC / DC Converter Type | SIP |
| Output Power Max | 1W |
| Output Voltage - Output 1 | 5V |
| Output Voltage - Output 2 | - |
| Output Regulation | Unregulated |
| Input Voltage DC Nom | 24V |
| Width | 6mm |
| Depth | 11.5mm |
| Input Voltage DC Max | 28.8V |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | MULTICOMP PRO |
| Part Number | MPB-24S05N2P |
| Quantity | Each |
| Technical Data Sheet (471.23KB) EN | View or download |
| Technical Data Sheet (432.50KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 406.96 |
| 3-5 | ₹ 402.81 |
| 5-10 | ₹ 394.51 |
| 10+ | ₹ 386.2 |
Bulk discount will be automatically applied during checkout based on quantity.
