Product Overview
The HFD27/012-M is a subminiature DIP electromagnetic relay designed for PCB mounting. It features a 12V DC coil and a double pole double throw (DPDT, 2 Form C) contact configuration, allowing for versatile switching in compact electronic circuits. The relay is capable of switching up to 2A at 30VDC or 1A at 125VAC, with a maximum switched voltage of 120V DC or 240V AC. It uses AgNi + Au (Silver Nickel with Gold plating) as the contact material, ensuring reliable low-level signal switching.
- 2 Form C Configuration
- Matching 16 pin IC socket
- Bifurcated contacts
- Epoxy sealed for automatic-wave soldering and cleaning
Product details
| Coil Voltage |
12VDC |
| Contact Current |
2A |
| Relay Mounting |
Through Hole |
| Relay Terminals |
PC Pin |
| Contact Voltage VDC |
120V |
| Coil Resistance |
450ohm |
| Contact Configuration |
DPDT |
| Product Range |
HFD27 Series |
| Coil Type |
Non Latching |
| Contact Voltage VAC |
240V |
| Contact Material |
Silver Nickel |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
HONGFA |
| Part Number |
HFD27/012-M |
| Quantity |
Each |

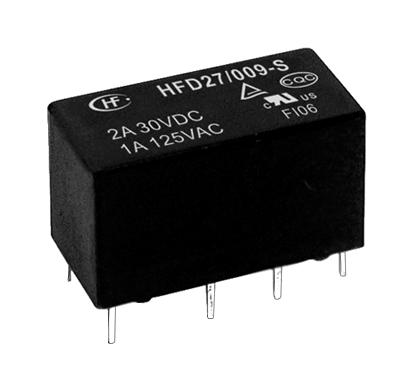

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
