Product Overview

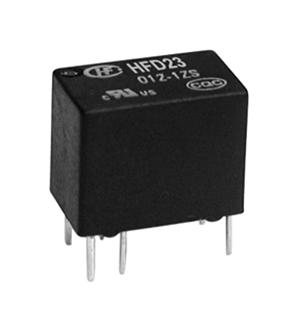

The HFD23/012-1ZS is a subminiature signal relay designed for PCB mounting, featuring a 12V DC coil and a single changeover (SPDT, 1 Form C) contact arrangement. It offers a maximum switching capability of up to 2A, with high sensitivity requiring only 150mW coil power. The relay is available in a plastic sealed type for enhanced protection and is suitable for signal switching applications in telecommunications, instrumentation, and other electronic devices where compact size and reliable performance are essential
- Coil Voltage: 12V DC
- Contact Arrangement: 1 Form C (SPDT, single changeover)
- Contact Rating: Up to 2A at 125V AC or 60V DC
- Contact Material: AgNi (Silver Nickel)
- Ambient Temperature Range: -40°C to +85°C
- Dielectric Strength: 1,000V (between open contacts), 4,000V (between coil and contacts)
Product details
| Coil Voltage |
12VDC |
| Contact Current |
2A |
| Relay Mounting |
Through Hole |
| Relay Terminals |
PC Pin |
| Contact Voltage VDC |
60V |
| Coil Resistance |
960ohm |
| Contact Configuration |
SPDT |
| Product Range |
HFD23 Series |
| Coil Type |
Non Latching |
| Contact Voltage VAC |
125V |
| Contact Material |
Silver Nickel |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
HONGFA |
| Part Number |
HFD23/012-1ZS |
| Quantity |
Each |
