Product Overview

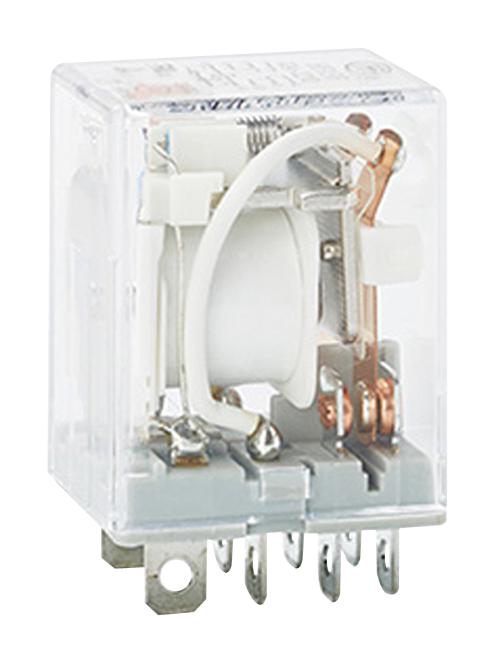

The HF13F/A240-2Z13D is a high-reliability DPDT (Double Pole Double Throw) relay designed for industrial control, automation, and power switching applications. Featuring a 240V AC coil, this relay is ideal for use in systems operating on standard mains voltage, offering dependable performance in compact form factors.
- Conforms to the CE low voltage directive
- Coil Voltage: 240 VAC
- Contact Configuration: 2 Form C (DPDT)
- Contact Rating: 10 A at 250 VAC / 30 VDC
- Mounting Type: Plug-in or PCB mount
- Terminal Type: Solder or socket compatible
- Insulation System: UL Class F
- Dielectric Strength: 5000 Vrms (coil to contacts)
- Operating Temperature Range: -40°C to +85°C
- Certifications: UL, CE, CQC
Product details
| Contact Configuration |
DPDT |
| Contact Current |
10A |
| Relay Mounting |
Socket Mount |
| Contact Voltage VAC |
250VAC |
| Contact Voltage VDC |
30VDC |
| Coil Resistance |
16.3kohm |
| Coil Voltage |
240VAC |
| Product Range |
Hongfa - HF13 Series |
| Coil Type |
Non Latching |
| Relay Terminals |
Plug In |
| Contact Material |
Silver Nickel |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
HONGFA |
| Part Number |
HF13F/A240-2Z13D |
| Quantity |
Each |
