Product Overview

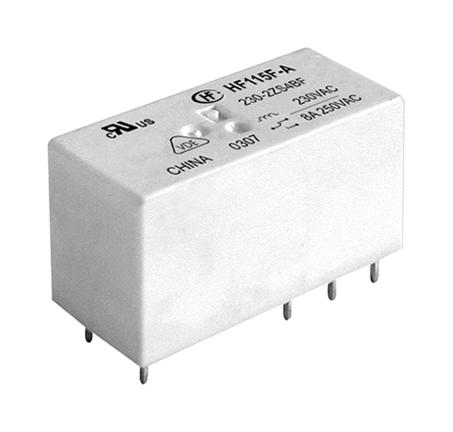

The HF115F-A/230-1ZS1AF is a miniature high power relay designed for 230V AC coil operation. It is part of the HF115F-A series, known for compact size, high switching capacity, and compliance with international safety standards. Featuring a 230V AC and SPDT (1 Form C) contact configuration, this relay offers excellent electrical endurance and insulation performance.
- Coil Voltage: 230V AC
- Contact Arrangement: SPDT (1 Form C)
- Contact Rating: 12 A at 250 VAC (resistive load)
- Mounting: PCB terminals
- Terminal Type: Solder
- Dielectric Strength: 5,000 VAC (coil to contacts)
- Ambient Temperature Range: -40°C to +70°C
Product details
| Contact Configuration |
SPDT |
| Contact Current |
12A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Coil Resistance |
32.5kohm |
| Coil Voltage |
230VAC |
| Product Range |
HF115F-A Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Tin Oxide |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
HONGFA |
| Part Number |
HF115F-A/230-1ZS1AF |
| Quantity |
Each |
