Product Overview

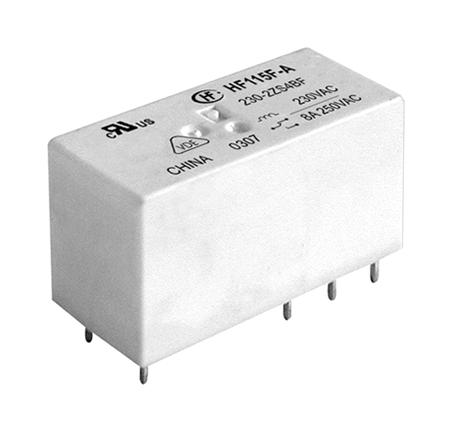

The HF115F-A/024-2ZS4AF is a miniature high power relay designed for 24V AC coil operation. It belongs to the HF115F-A series, which is known for its compact size, high switching capacity, and reinforced insulation, making it suitable for demanding applications in household appliances, industrial automation, and control systems. Featuring a 24V AC and a DPDT (2 Form C) contact configuration, this relay offers excellent electrical endurance and insulation performance.
- Coil Voltage: 24V AC
- Contact Arrangement: DPDT (2 Form C)
- Contact Rating: 8 A at 250 VAC (resistive load)
- Terminal Type: Solder
- Ambient Temperature Range: -40°C to +70°C
- Dielectric Strength: 5kV (between coil and contacts)
Product details
| Contact Configuration |
DPDT |
| Contact Current |
8A |
| Relay Mounting |
Through Hole |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Coil Resistance |
350ohm |
| Coil Voltage |
24VAC |
| Product Range |
HF115F-A Series |
| Coil Type |
Non Latching |
| Relay Terminals |
PC Pin |
| Contact Material |
Silver Tin Oxide |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
HONGFA |
| Part Number |
HF115F-A/024-2ZS4AF |
| Quantity |
Each |
