Product Overview

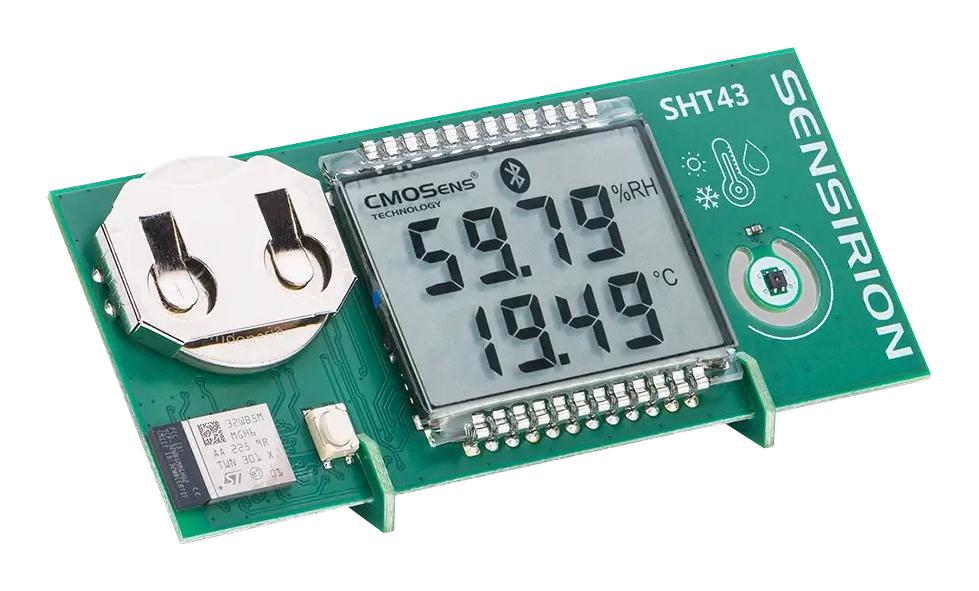

SHT43 DEMOBOARD is a SHT43 humidity and temperature sensor demo board. This is a compact demonstrator showcasing the exceptional performance and user-friendliness of our SHT4x humidity and temperature sensors, along with the ISO17025 certificate support for the SHT43 sensor. Featuring an LCD display presenting humidity and temperature data, this device also includes a Bluetooth Low Energy module for communication with smartphones and other compatible devices.
- SHT43 humidity and temperature sensor
- LCD screen to visualize humidity and temperature
- Bluetooth Low Energy (BLE) connectivity to iOS and Android smartphones
- Free iOS and Android app available
- Data logging and export capabilities
- Source code and hardware files available on GitHub
- Power is supplied via an on-board coin cell battery
- Operating temperature range from -10 to 60°C
- Size (LxWxH) is 75 x 32 x 0.8mm
Product details
| IC / Module Used |
SHT43 |
| Kit Contents |
Demonstration Board SHT43 |
| Application Sub Type |
Temperature & Humidity Sensor |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
SENSIRION |
| Part Number |
SHT43 DEMOBOARD |
| Quantity |
Each |
| Technical Data Sheet (1.25MB) EN |
View or download |
