Description
Product Overview

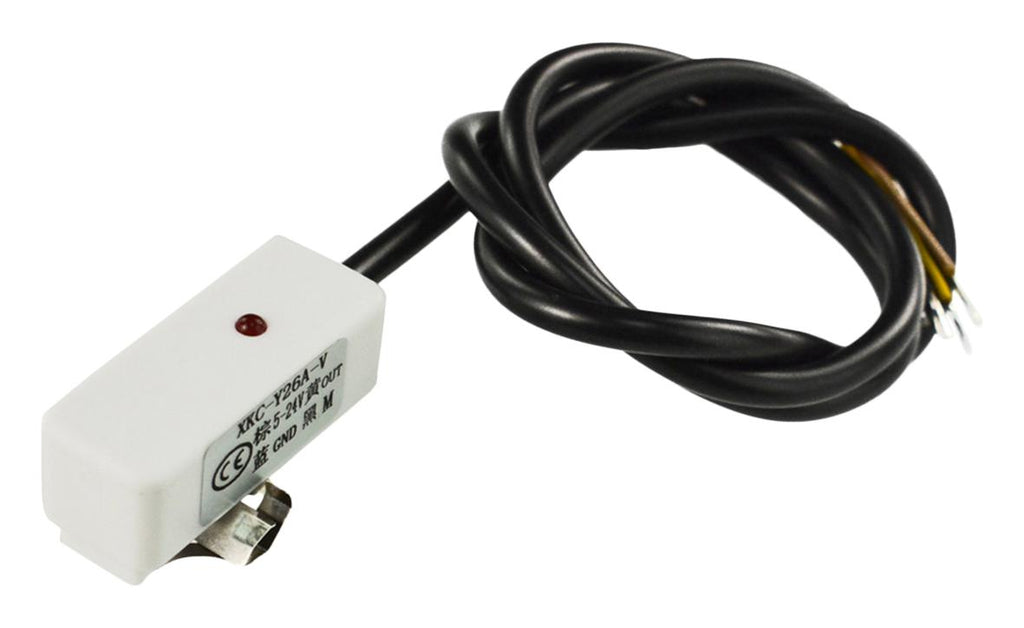

The DFRobot SEN0370 is a non-contact liquid level sensor with a status indicator and adjustable sensitivity. It is especially suitable for detecting the liquid level of all sorts of non-metal tubes (suitable for outer diameter ≤10mm). This non-contact liquid level sensor is based on a high-speed chip with advanced signal processing technology. It can measure the liquid level of a closed container and it will not be affected by corrosive liquids like strong acid and alkali. The status feedback of the sensor is given in real-time and the sensor also comes with a 4-pin adaptor that can directly collect digital signals, making it ideal for connecting to Arduino or other controllers.
- Adjustable sensitivity with status indicator
- Robust ABS material
- IP65 Rated for waterproof operation
- Power Supply: 5-24V
- Response Time: 500ms
- Operating Temperature: -5°C to 105°C
- Suitable Pipe Diameter: ≤10mm
- Liquid Level Error: ±1.5mm
Contents
Liquid level sensor, 4-pin Gravity sensor adaptor and screwdriver
Product details
| Process Connection Type | - |
| Accuracy | ± 1.5mm |
| Output Interface | - |
| Supply Voltage Min | 5V |
| Supply Voltage Max | 24V |
| Operating Temperature Max | 105°C |
| SVHC | No SVHC (04-Feb-2026) |
| Operating Pressure Max | - |
| Sensor Output Type | - |
| Housing Material | ABS (Acrylonitrile Butadiene Styrene) |
| Electrical Connection | Cable |
| Operating Temperature Min | -5°C |
| Product Range | - |
Other details
| Brand | DFROBOT |
| Part Number | SEN0370 |
| Quantity | Each |
| Technical Data Sheet (204.01KB) EN | View or download |
