Description
Product Overview
SEN0565 is a Fermion: MEMS Methane CH4 Gas Detection Sensor breakout board. It employs state-of-the-art micro-electromechanical system (MEMS) technology, endowing the sensor with compact dimensions low power consumption (< 20mA), minimal heat generation, short preheating time, and swift response recovery. The sensor can qualitatively measure methane gas concentration and is suitable for combustible gas leakage monitoring devices, gas leak detectors, fire/safety detection systems, environmental monitoring, indoor air quality, industrial safety and health applications.

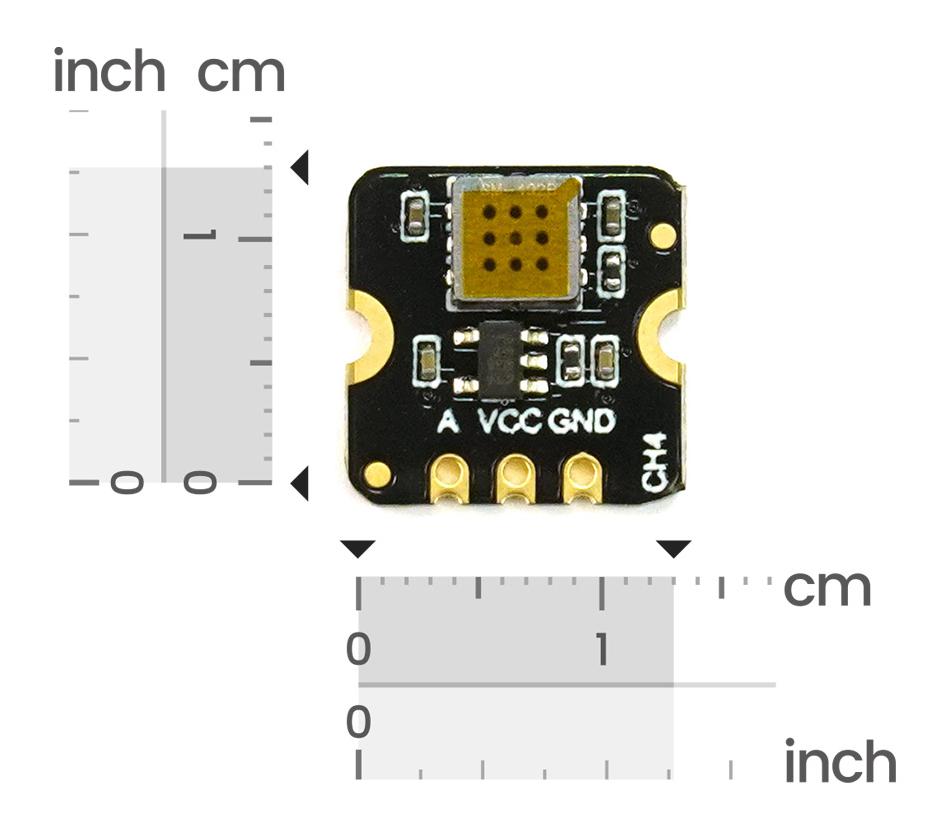

- Compact size, measuring only 13 x 13 x 2.5mm
- Gas detected: CH4, C3H8, etc
- High sensitivity and rapid response recovery
- Advanced MEMS technology
- Detection range: 1-10000ppm (C3H8)
- 5V operating voltage
- Analog voltage output signal
- Sensitivity: R0(in air)/Rs(in 5000ppm CH4) ≥ 2
- Lifespan: ≥5 years (in air)
- Operating temperature range from -10 to 50°C
Contents
Sensor breakout and header pin
Product details
| Silicon Manufacturer | Winsen |
| Core Architecture | - |
| Silicon Core Number | GM-402B |
| For Use With | DFRduino UNO R3 Boards |
| Silicon Family Name | - |
| Core Sub-Architecture | - |
| Kit Contents | MEMS CH4 Sensing Breakout Board GM-402B, 2.54mm Pitch Header Pin |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | DFROBOT |
| Part Number | SEN0565 |
| Quantity | Each |
| Technical Data Sheet (141.42KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 968.09 |
| 3-5 | ₹ 958.21 |
| 5-10 | ₹ 938.46 |
| 10+ | ₹ 918.7 |
Bulk discount will be automatically applied during checkout based on quantity.
