Description
Product Overview

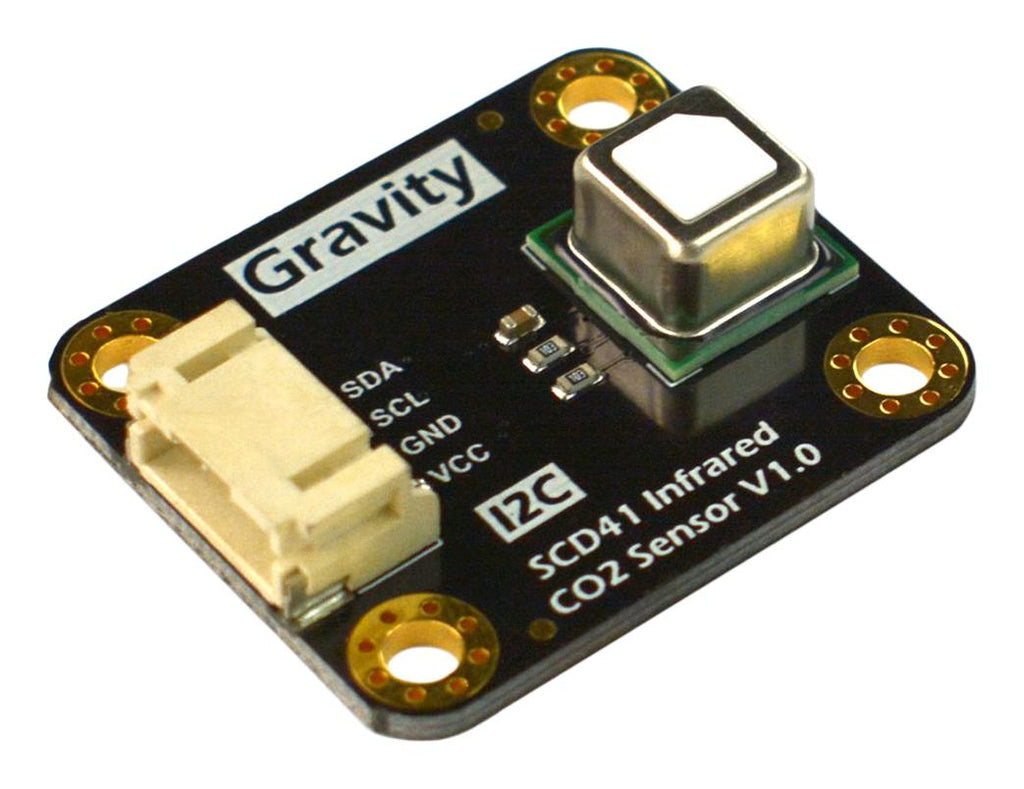

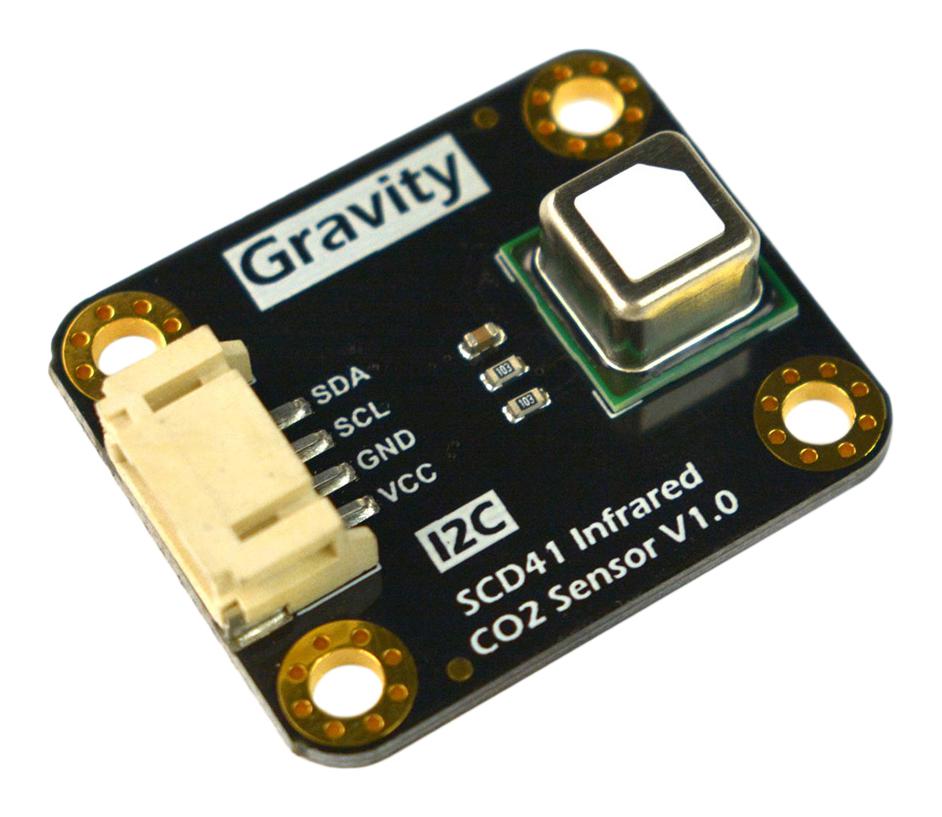

SEN0536 is a Gravity: I2C SCD41 Infrared Carbon Dioxide / CO2 Sensor board. The sensor measures CO2, temperature, and humidity with high accuracy, small size, and low power consumption. Ideal for indoor air quality monitoring. CO2 is a key factor for indoor air quality as high levels compromise human cognitive performance and well-being. This Gravity: SCD41 CO2 sensor is based on the SCD41 miniature CO2 sensor from Sensirion. SCD41 builds on the photoacoustic NDIR sensing principle and Sensirion’s patented PAsens® and CMOSens® technology to offer high accuracy at an unmatched price and the smallest form factor. On-chip signal compensation is realized with the built-in temperature and humidity sensor, while temperature and humidity data outputs are also available. Suitable for Indoor CO2 concentration monitoring, ambient monitoring in greenhouse and Smart ventilation systems applications.

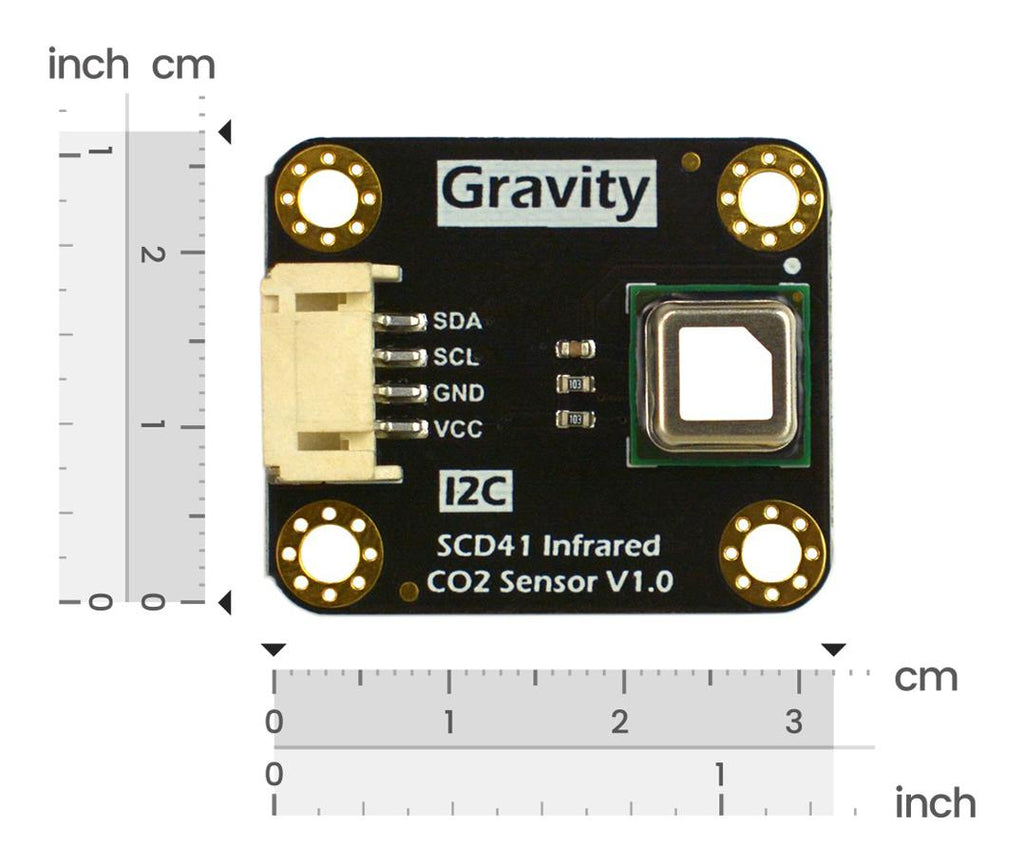

- Small size of 32x27x8mm
- Low power, average current< 4mA
- Power supply range from 3.3V to 5V
- Average operating current is <4mA
- I2C address: 0x62
Contents
CO2 sensor board and 4-pin Gravity sensor cable
Product details
| Silicon Manufacturer | Sensirion |
| Core Architecture | - |
| Silicon Core Number | SCD41 |
| For Use With | Arduino Boards |
| Silicon Family Name | - |
| Core Sub-Architecture | - |
| Kit Contents | Infrared CO2 Sensor Board SCD41, 4P I2C/UART Sensor Cable |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | DFROBOT |
| Part Number | SEN0536 |
| Quantity | Each |
| Technical Data Sheet (336.42KB) EN | View or download |
