Product Overview

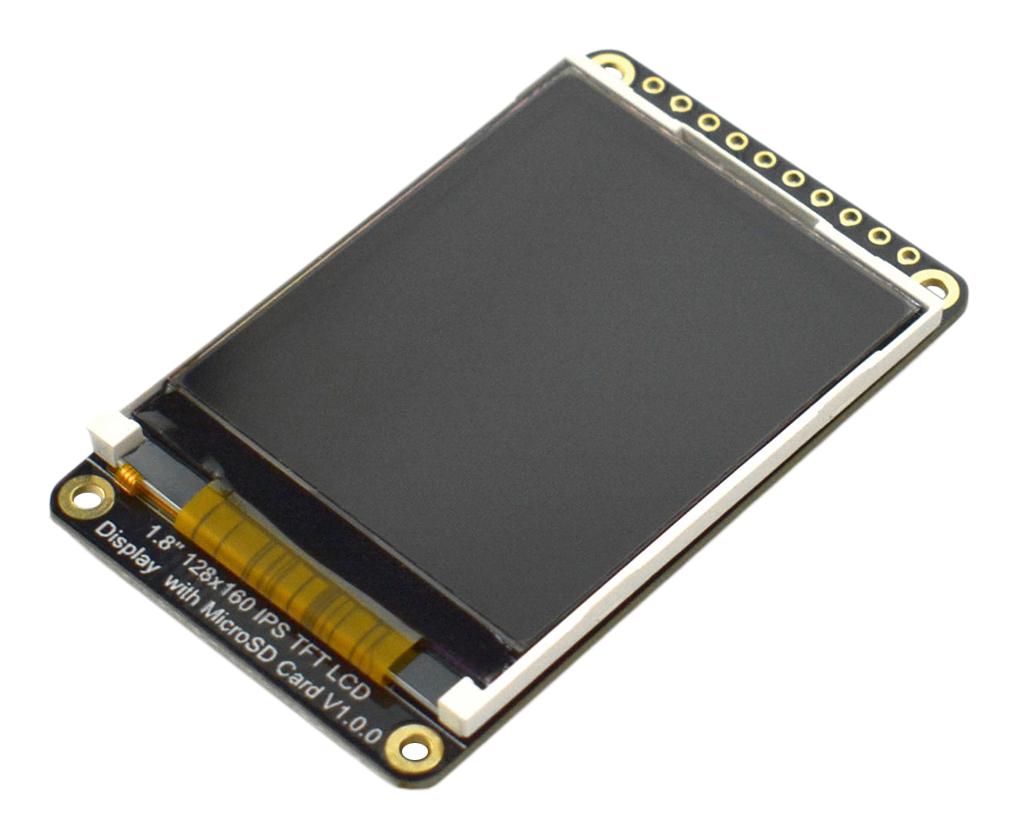

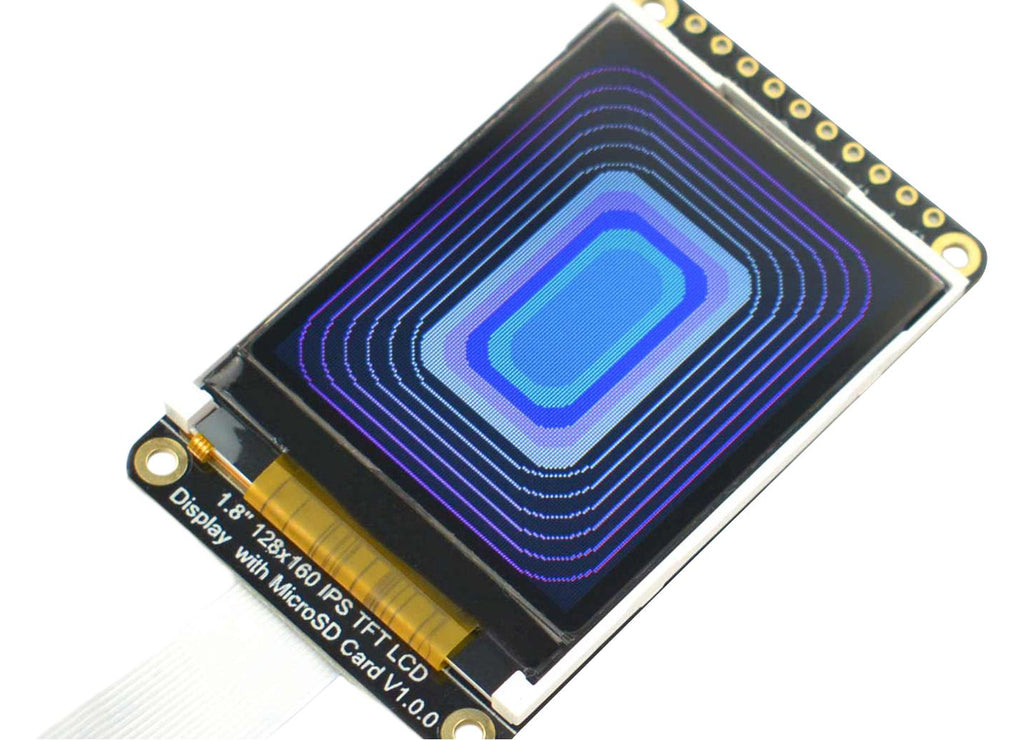

DFR0928 is a Fermion: 1.8" 128x160 IPS TFT LCD Display breakout board with MicroSD card slot. This module provides users with two wiring methods: pin header wiring and GDI (General Display interface). You can directly connect the display to a FireBeetle main controller using an FPC cable. Plug and play, easy to wire. Besides, the display supports a low refresh rate and offers a good display effect and strong versatility. It can be used in applications like sensor monitoring and alarm, Arduino temperature monitor, fan controller, etc.
- SPI (4-wire) communication
- Operating voltage range from 3.3 V - 5 V
- TFT viewing angle is 120degrees
- SPI communication

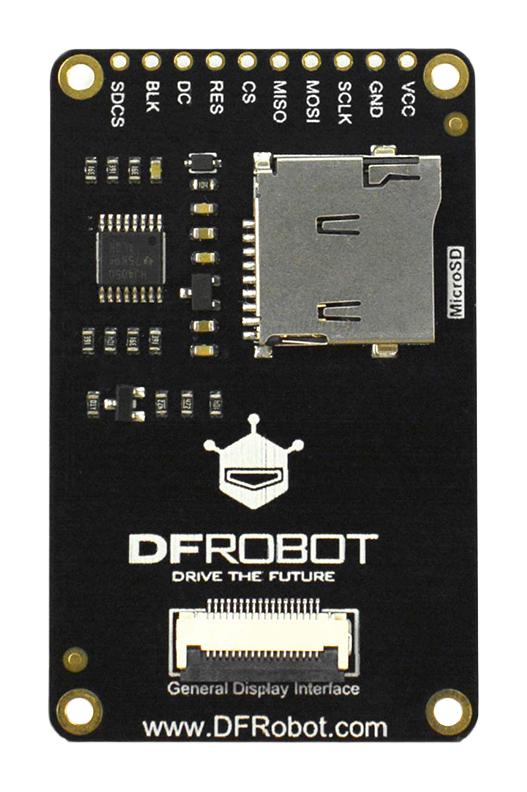

- Interface Mode: GDI, pin header
- 0.11W full-screen power consumption
- Operating temperature range from -10 to +60°C
Product details
| Silicon Manufacturer |
Sitronix |
| Silicon Core Number |
ST7735S |
| For Use With |
Arduino Development Boards |
| Core Sub-Architecture |
- |
| Kit Contents |
TFT LCD Display Breakout Board ST7735S with MicroSD Card Slot, GDI Display Cable, 10P Pin Connector |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0928 |
| Quantity |
Each |
| Technical Data Sheet (4.51MB) EN |
View or download |
