Product Overview

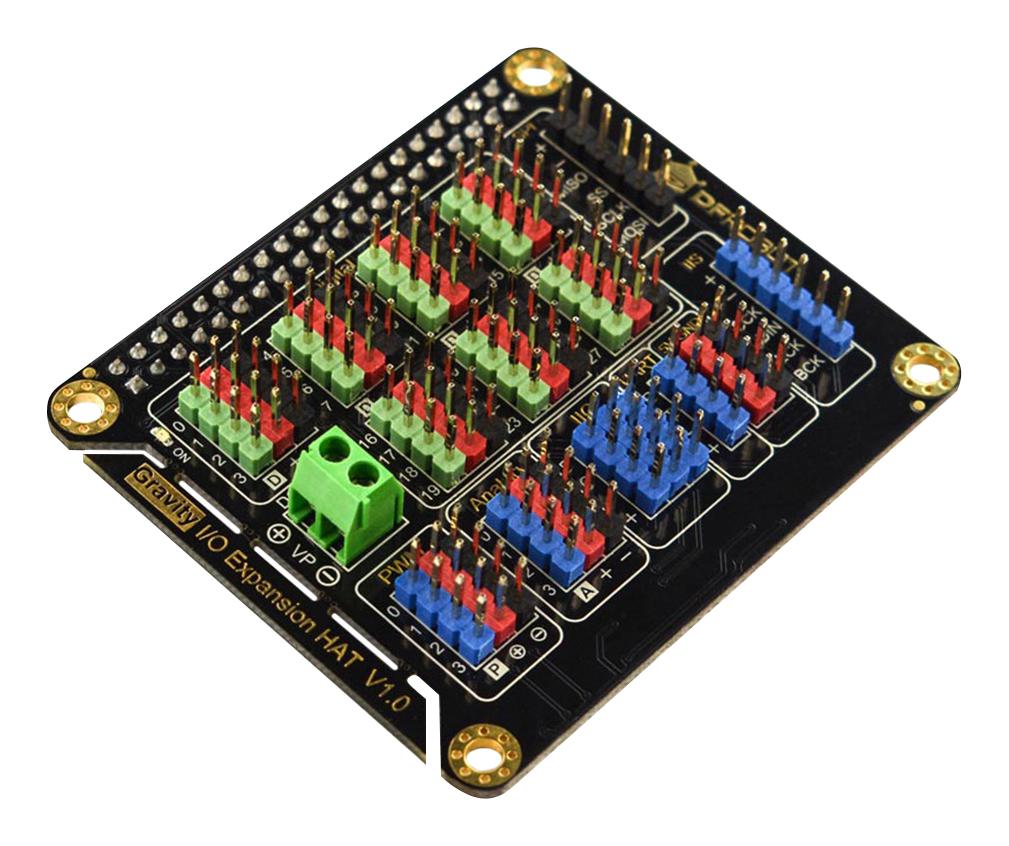

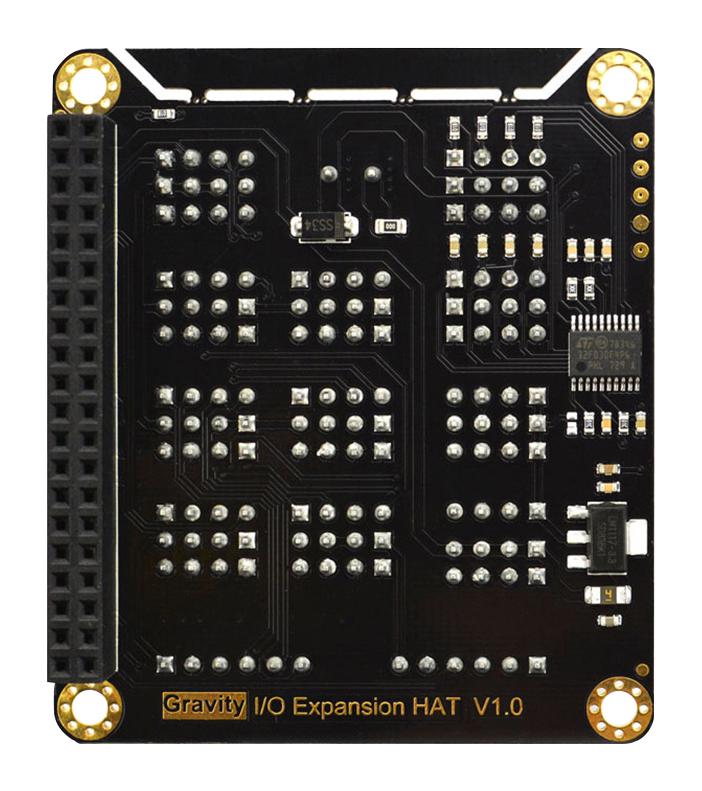

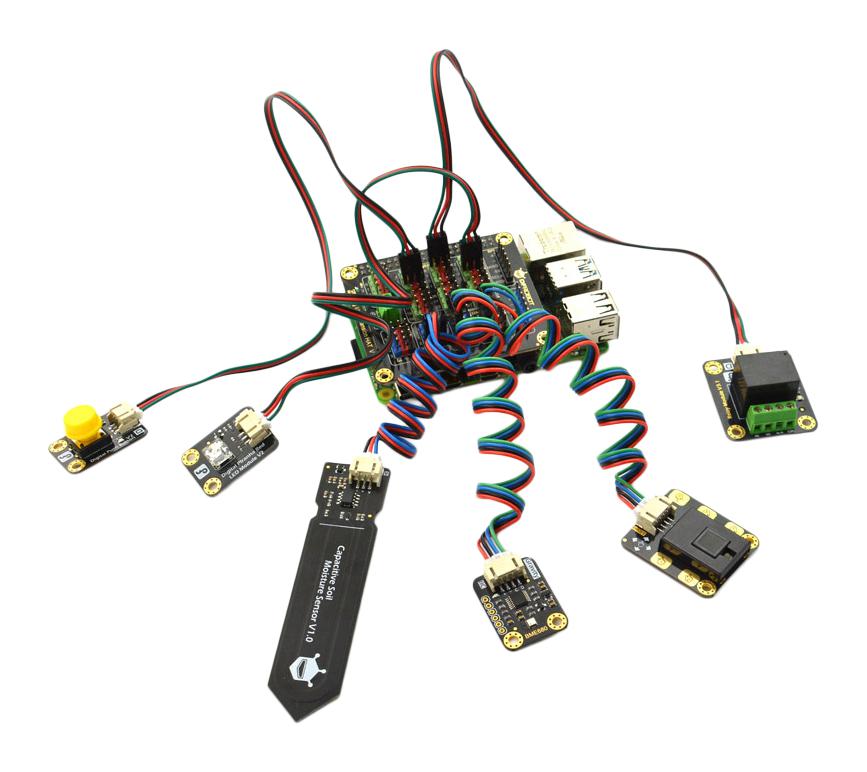

DFR0566 is a IO Expansion HAT for Raspberry Pi 5 / 4B / 3B+. It leads out all of the IO ports on Raspberry Pi including digital port, analogue port, PWM, I2C, UART, SPI, and IIS. Besides that, the HAT is totally compatible with DFRobot Gravity Series, which frees users from complicated connection work and enables them to concentrate on their project building.
- Operating voltage is 5V
- PWM port external power range from 6-12V
- Sensor interface external power is 3.3V

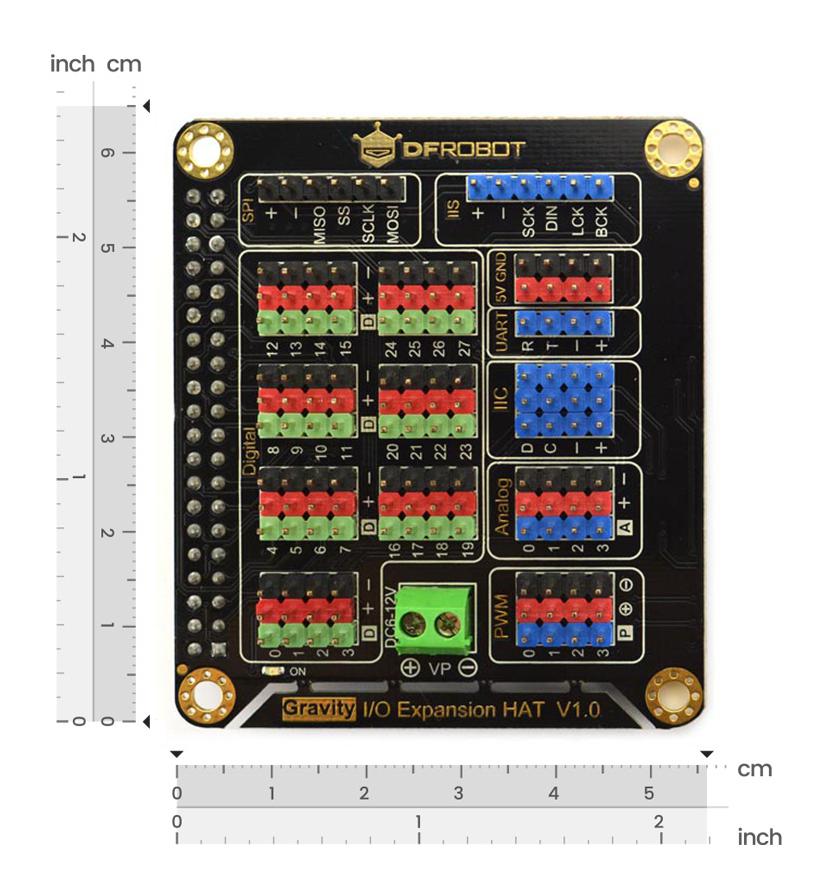

- Dimension: 65x56mm/2.56x2.20”
Product details
| Add-On-Card & Module Type |
IO Expansion Hat |
| Product Range |
- |
| For Use With |
Raspberry Pi 4B/3B+ Single Board Computers |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0566 |
| Quantity |
Each |
| Technical Data Sheet (1.15MB) EN |
View or download |
