Product Overview

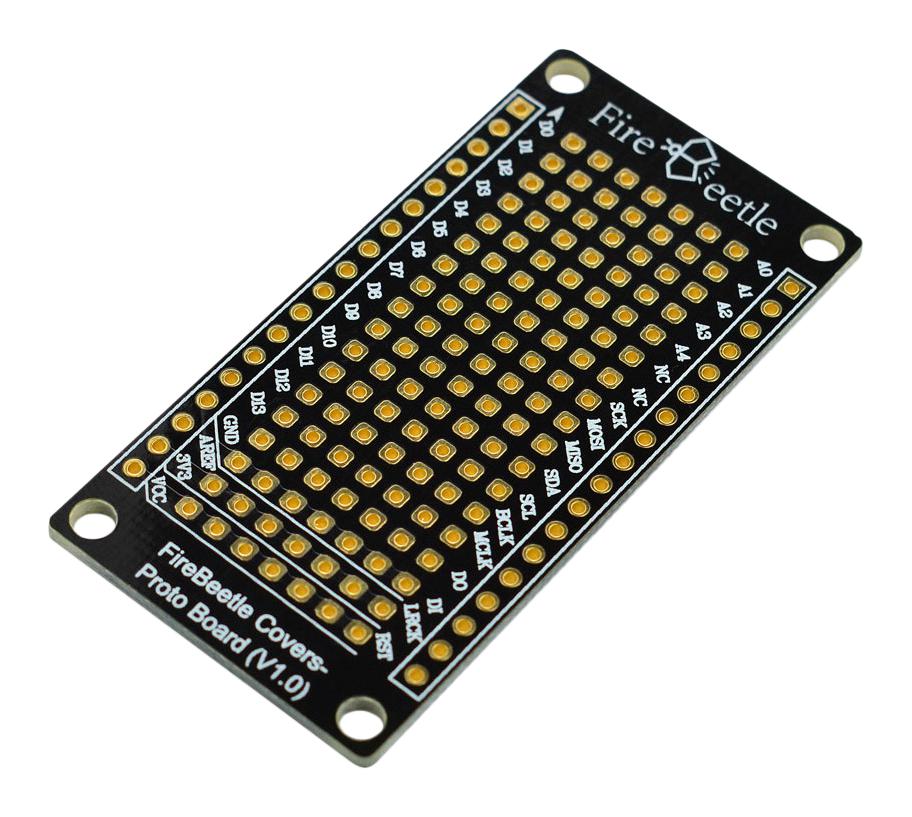

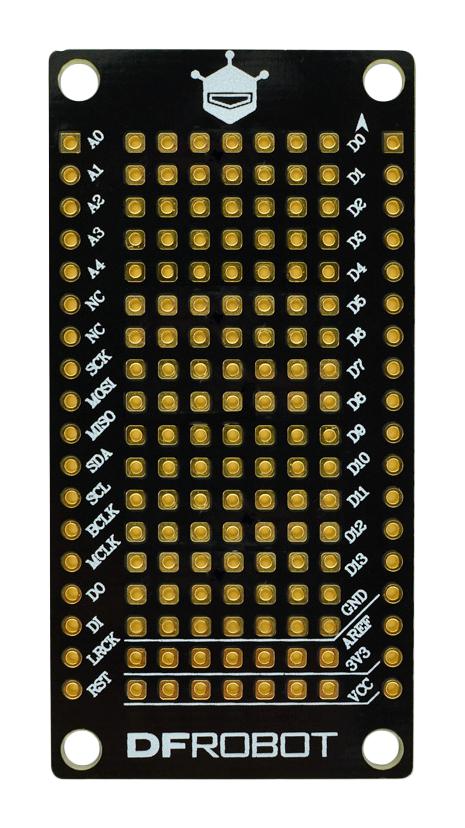

The DFRobot DFR0131 Proto Board is compatible with the FireBeetle series of products. The board provides 14x7 general 2.54mm solder holes with standard spacing. The prototyping boards connect to one master board with VCC, 3.3V and GND soldering pads. The compact size of the Proto Board contributes to it being an ideal vehicle for soldering electronic components. Moreover, the ports compatible with other projects of FireBeetle makes it the best choice for overlay circuit prototypes.
- Compact prototyping board
- Provides 14x7 standard 2.54mm soldering pads
- Plug & play compatibility with FireBeetle products

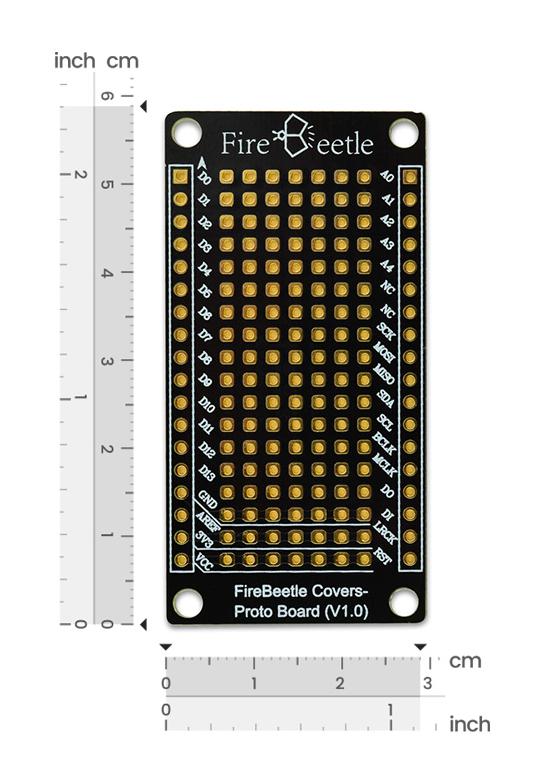

- Board Dimensions: 29x58mm
Product details
| Board Type |
FireBeetle Cover Prototype Board |
| Hole Diameter |
- |
| External Width |
29mm |
| SVHC |
No SVHC (04-Feb-2026) |
| Board Material |
- |
| External Height |
58mm |
| Board Thickness |
- |
Other details
| Brand |
DFROBOT |
| Part Number |
DFR0481 |
| Quantity |
Each |
| Technical Data Sheet (232.26KB) EN |
View or download |
