Product Overview

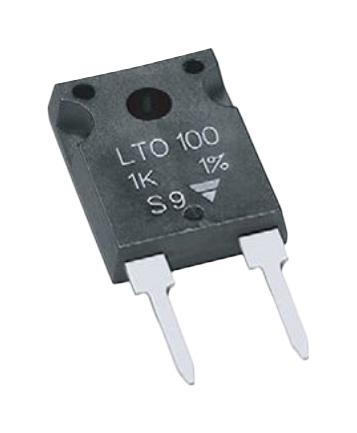

VISHAY LTO100F4R300JTE3 Through Hole Resistor, 4.3 ohm, LTO 100 Series, 100 W, ± 5%, TO-247, 500 V
Product details
| Resistance |
4.3ohm |
| Power Rating |
100W |
| Resistor Case / Package |
TO-247 |
| Resistor Technology |
Thick Film |
| Resistor Type |
High Power |
| Product Length |
15.76mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Product Range |
LTO 100 Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
500V |
| Temperature Coefficient |
± 350ppm/°C |
| Product Diameter |
- |
| Product Width |
5mm |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
VISHAY |
| Part Number |
LTO100F4R300JTE3 |
| Quantity |
Each |
| Technical Data Sheet (44.00B) EN |
View or download |
