Product Overview

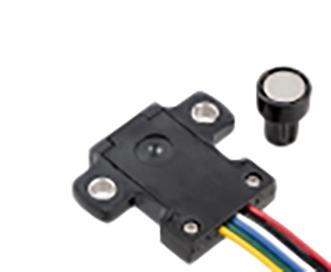

MIDORI PRECISIONS BY NIDEC COMPONENTS CP2HXC360R1 Rotary Angle Sensor, Ratiometric, No Shaft, Non-Contact, 360°, ±2%, 10mA, -40 to 100°C, CP2HX Series
Product details
| Sensor Type |
Rotary Angle Sensor |
| Shaft Type |
No Shaft |
| Electrical Angle |
360° |
| Supply Voltage |
5VDC |
| Output Signal |
- |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Output Type |
Ratiometric |
| Contact Type |
Non-Contact |
| Linearity |
± 2% |
| Supply Current |
10mA |
| Operating Temperature Min |
-40°C |
| Product Range |
CP2HX Series |
Other details
| Brand |
MIDORI PRECISIONS BY NIDEC COMPONENTS |
| Part Number |
CP2HXC360R1 |
| Quantity |
Each |
| Enhanced Product Overview (5.62MB) EN |
View or download |
| Technical Data Sheet (1.01MB) EN |
View or download |
