Product Overview

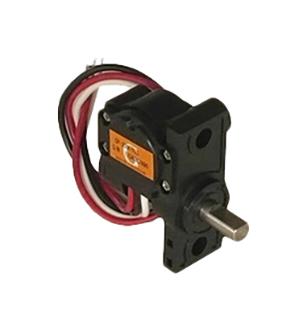

MIDORI PRECISIONS BY NIDEC COMPONENTS CP-22HC-50S Rotary Angle Sensor, Ratiometric, Dual Cross O/P, D Type Flatted End, Non-Contact, 18000°, ±1%, 5VDC
Product details
| Sensor Type |
Rotary Angle Sensor |
| Shaft Type |
D Type Flatted End |
| Electrical Angle |
18000° |
| Supply Voltage |
5VDC |
| Output Signal |
- |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Output Type |
Ratiometric |
| Contact Type |
Non-Contact |
| Linearity |
± 1% |
| Supply Current |
32mA |
| Operating Temperature Min |
-40°C |
| Product Range |
CP-22H Series |
Other details
| Brand |
MIDORI PRECISIONS BY NIDEC COMPONENTS |
| Part Number |
CP-22HC-50S |
| Quantity |
Each |
| Technical Data Sheet (650.27KB) EN |
View or download |
| Enhanced Product Overview (5.62MB) EN |
View or download |
