Description
Product Overview

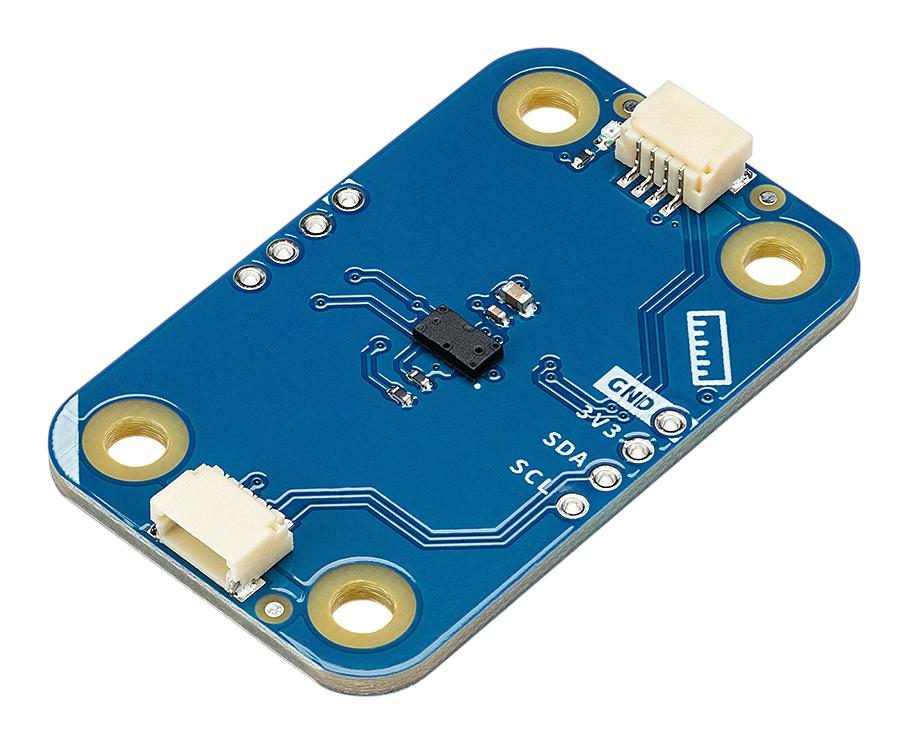

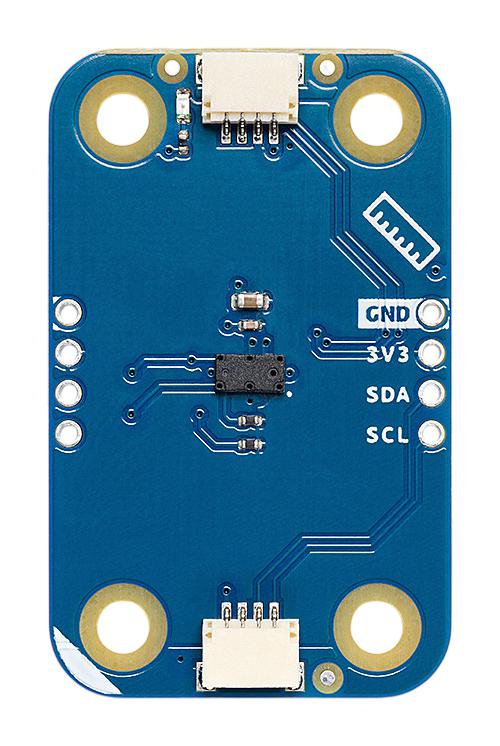

ABX00102 is an Arduino® Modulino® Distance board. It features the VL53L4CDV0DH/1 time-of-flight sensor and provides accurate distance measurements in a compact, easy-to-use form factor. Ideal for proximity detection, obstacle avoidance, and various smart sensing applications. It is targeted for makers, beginners and education purpose.
- Uses the VL53L4CDV0DH/1 sensor for precise time-of-flight distance measurements (0–1200mm)
- I2C (Qwiic) interface for solder-free integration; operates at 3.3V

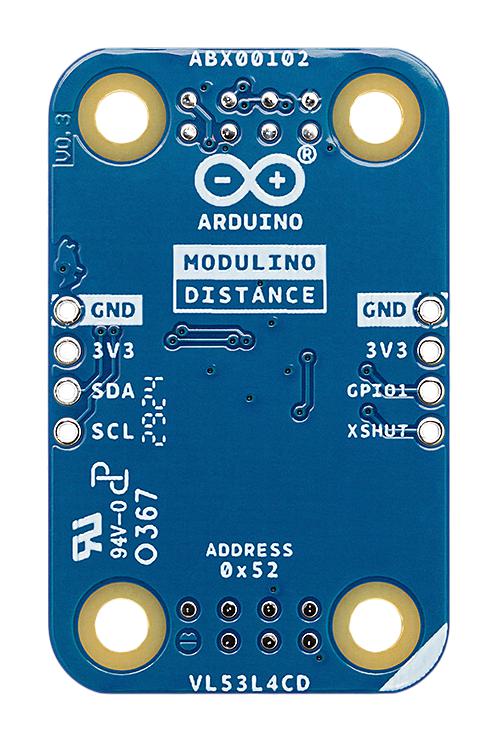

- Additional GPIO1 pin for interrupt signalling, XSHUT pin for power saving or reset
- Ideal for proximity detection, collision avoidance, and general distance measuring tasks
- Sensor supply range from 2.6V to 3.5V
- Powered at 3.3V through the Qwiic interface (in accordance with the Qwiic standard)
- Operating temperature range from -40°C to +85°C
- Typical current: 40mA peak (active ranging) and 24mA during active measurement, 4mA I2C idle
Contents

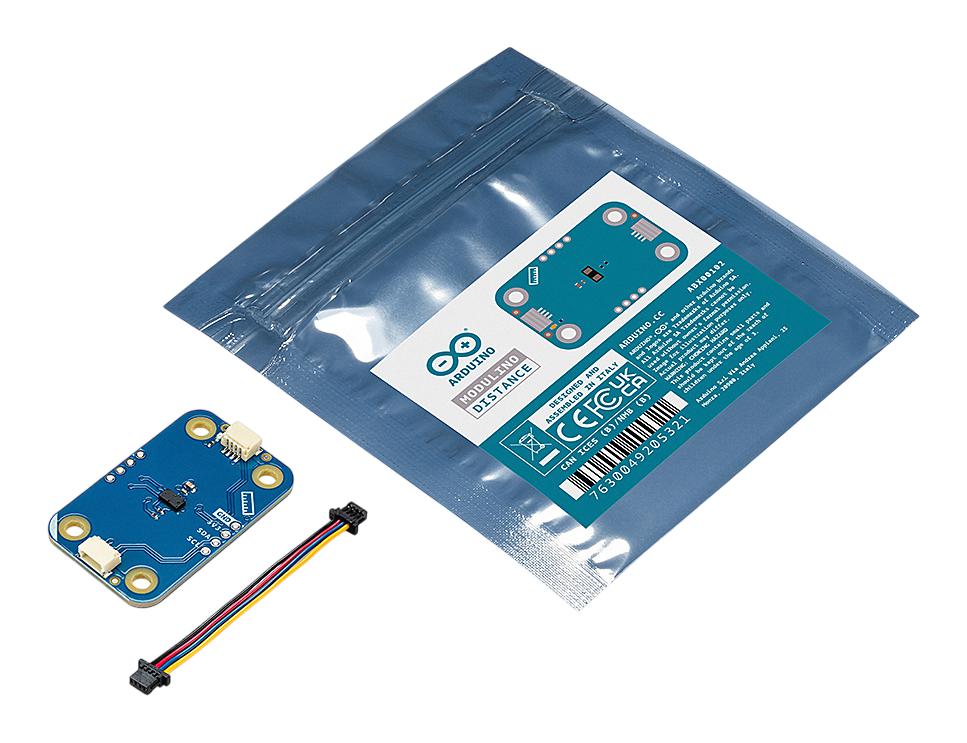

Modulino® Distance board, I2C Qwiic cable.
Product details
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | - |
| Silicon Core Number | VL53L4CDV0DH/1 |
| For Use With | Arduino UNO R4 WiFi Boards, Arduino Nano Boards |
| Silicon Family Name | - |
| Core Sub-Architecture | - |
| Kit Contents | Modulino Distance Board VL53L4CDV0DH/1, I2C Qwiic Cable |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | ARDUINO |
| Part Number | ABX00102 |
| Quantity | Each |
| Technical Data Sheet (2.22MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 1809.05 |
| 3-5 | ₹ 1790.59 |
| 5-10 | ₹ 1753.67 |
| 10+ | ₹ 1716.75 |
Bulk discount will be automatically applied during checkout based on quantity.
