Description
Product Overview

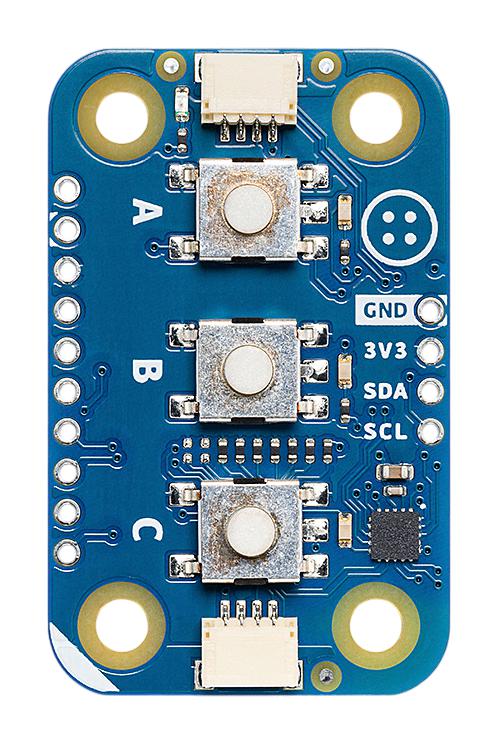

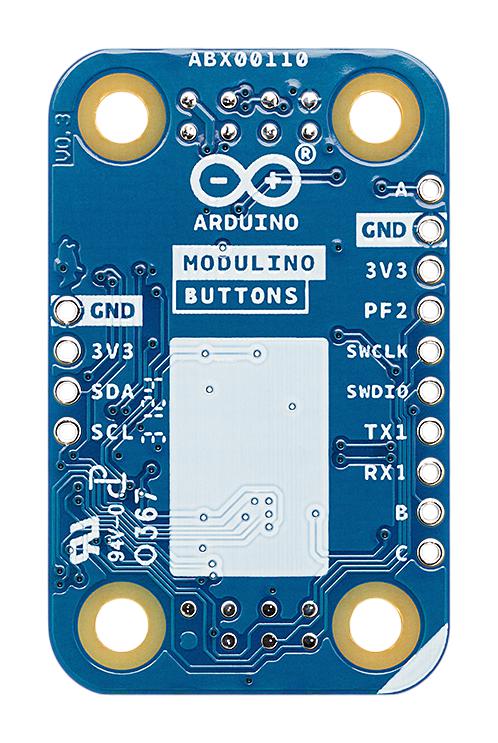

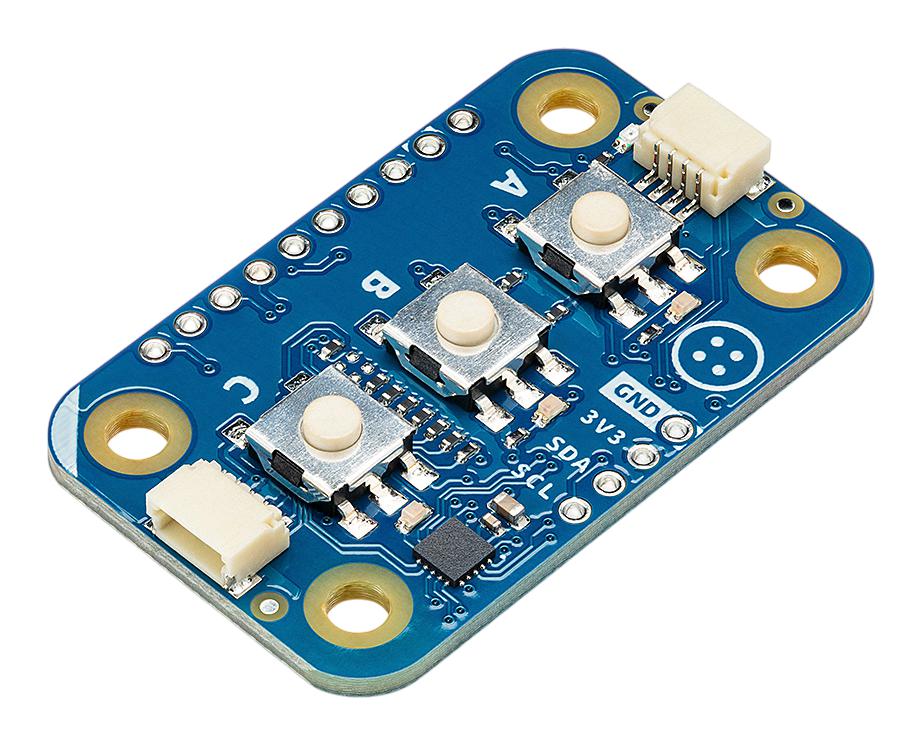

ABX00110 is an Arduino® Modulino® Buttons board. It is powered by an on-board STM32C011F4 microcontroller, features three SPST push buttons and three indicator LEDs. This setup enables both simple digital input reading via I2C and more advanced interfacing or reprogramming options. Ideal for projects that require user interaction, menu navigation, or quick control inputs. It is targeted for makers, beginners and education purpose.
- Three SPST push buttons and three on-board indicator LEDs
- Integrated STM32C011F4 microcontroller providing I2C interface by default
- Optional SWD interface for custom firmware and advanced features
- Designed for 3.3V operation via the Qwiic connector (I2C)
- Ideal for user interaction and input within modular IoT or maker projects
- Supply voltage range from 2V to 3.6V
- Power consumption: 2.5mA × 3 + 3.4mA (LEDs + MCU)
- LEDs: 3× indicator LEDs (controlled by MCU)
- Communication I2C (Qwiic), SWD (reprogramming), UART (option)
Contents

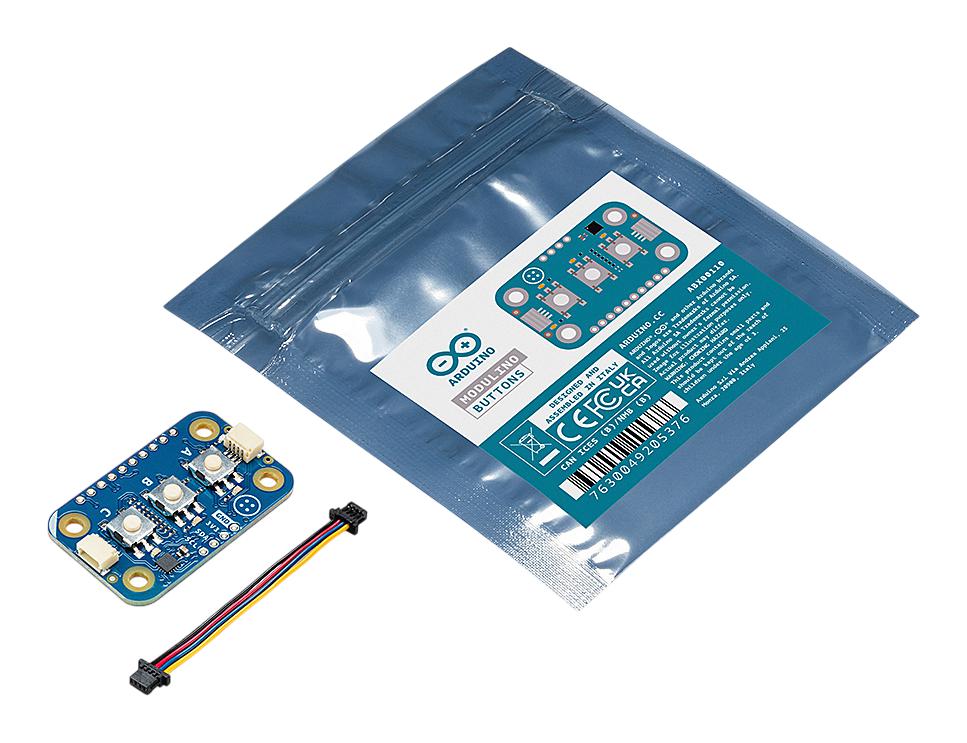

Modulino® Buttons, I2C Qwiic cable.
Product details
| Silicon Manufacturer | STMicroelectronics |
| Core Architecture | ARM |
| Silicon Core Number | STM32C011F4 |
| For Use With | Arduino Boards |
| Silicon Family Name | STM32 |
| Core Sub-Architecture | Cortex-M0+ |
| Kit Contents | Modulino Button Board STM32C011F4, I2C Qwiic Cable |
| SVHC | No SVHC (25-Jun-2025) |
Other details
| Brand | ARDUINO |
| Part Number | ABX00110 |
| Quantity | Each |
| Technical Data Sheet (2.82MB) EN | View or download |
