Product Overview
MT25QL128ABB1ESE-0AUT is a multiple I/O serial flash memory. The MT25Q is a high-performance multiple input/output serial flash memory device. It features a high-speed SPI-compatible bus interface, execute-in-place (XIP) functionality, advanced write protection mechanisms, and extended address access.
- SPI-compatible serial bus interface, single and double transfer rate (STR/DTR)
- Supported protocols: extended, dual, and quad I/O in both STR and DTR
- PROGRAM/ERASE SUSPEND operations, volatile and non-volatile configuration settings
- Software reset, additional reset pin for selected part numbers
- Program performance: 2MB/sec
- JESD47H-compliant, minimum 100,000 ERASE cycles per sector, data retention: 20 years (typ)
- Automotive grade AEC-Q100 qualified, 2.7V to 3.6V voltage rating
- 128Mb (16MB) density
- 64KB sectors, 4KB and 32KB subsectors
- 8-pin SOP2 package, -40°C to +125°C operating temperature
Product details
| Flash Memory Type |
Serial NOR |
| Memory Configuration |
32M x 4bit |
| IC Case / Package |
WSOIC |
| Clock Frequency Max |
133MHz |
| Supply Voltage Min |
2.7V |
| Supply Voltage Nom |
3V |
| Operating Temperature Min |
-40°C |
| Product Range |
3V Serial NOR Flash Memories |
| Memory Density |
128Mbit |
| Interfaces |
SPI |
| No. of Pins |
8Pins |
| Access Time |
- |
| Supply Voltage Max |
3.6V |
| IC Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
MICRON |
| Part Number |
MT25QL128ABB1ESE-0AUT |
| Quantity |
Each |
| Technical Data Sheet (944.14KB) EN |
View or download |

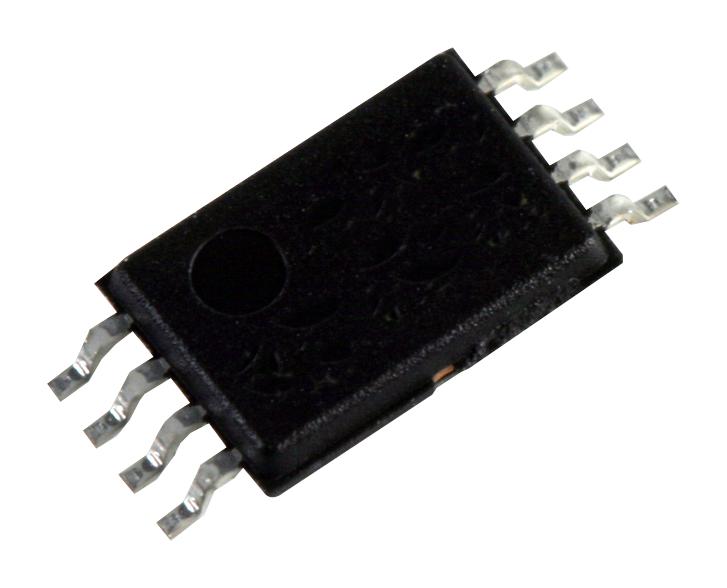

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
