Product Overview

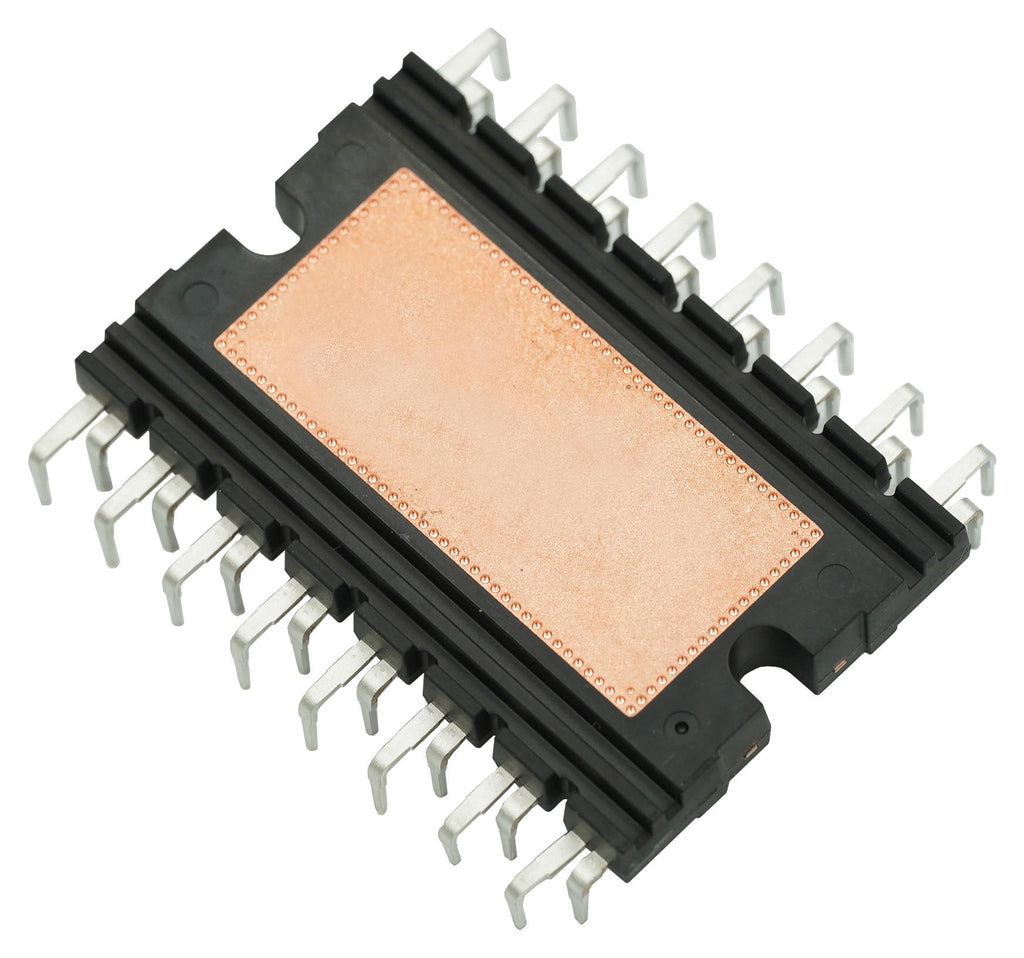

STMICROELECTRONICS M2TP80M12W2-2LA Silicon Carbide MOSFET, FourPack, N Channel, 30 A, 1.2 kV, 0.114 ohm, ACEPACK DMT
Product details
| MOSFET Module Configuration |
FourPack |
| Continuous Drain Current Id |
30A |
| Drain Source On State Resistance |
0.114ohm |
| No. of Pins |
32Pins |
| Gate Source Threshold Voltage Max |
5V |
| Operating Temperature Max |
175°C |
| SVHC |
No SVHC (25-Jun-2025) |
| Channel Type |
N Channel |
| Drain Source Voltage Vds |
1.2kV |
| Transistor Case Style |
ACEPACK DMT |
| Rds(on) Test Voltage |
18V |
| Power Dissipation |
- |
| Product Range |
- |
Other details
| Brand |
STMICROELECTRONICS |
| Part Number |
M2TP80M12W2-2LA |
| Quantity |
Each |
| Technical Data Sheet (952.26KB) EN |
View or download |
| Product Change Notice (85.39KB) EN |
View or download |
