Product Overview

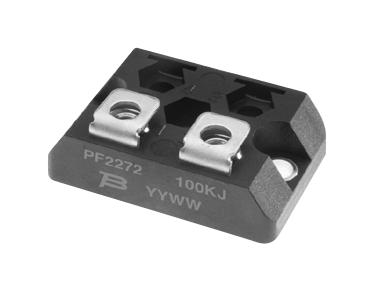

BOURNS PF2272-1RJ1 Resistor, 1 ohm, Riedon PF2270 Series, 200 W, ± 5%, Screw
Product details
| Resistance |
1ohm |
| Power Rating |
200W |
| Resistor Terminals |
Screw |
| Resistor Technology |
Thick Film |
| Resistor Type |
High Power |
| Product Length |
38.1mm |
| Product Height |
12.1mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Product Range |
Riedon PF2270 Series |
| Resistance Tolerance |
± 5% |
| Voltage Rating |
- |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Mounting |
Panel Mount |
| Product Width |
25mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
BOURNS |
| Part Number |
PF2272-1RJ1 |
| Quantity |
Each |
| Technical Data Sheet (730.22KB) EN |
View or download |
