Product Overview

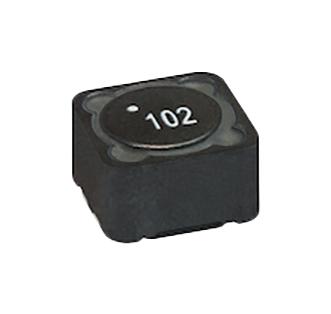

VISHAY IFCL5050HZER681M Coupled Inductor, 680 µH, 1.08 ohm, 800 mA Irms, 900 mA Isat, 12.5 mm x 12.5 mm x 8mm
Product details
| Product Range |
IFCL-5050HZ Series |
| RMS Current, Parallel |
800mA |
| DC Resistance Max, Parallel |
1.08ohm |
| Turns Ratio |
- |
| Product Width |
12.5mm |
| Inductor Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Inductance, Parallel |
680µH |
| Saturation Current, Parallel |
900mA |
| Leakage Inductance |
- |
| Product Length |
12.5mm |
| Product Height |
8mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
VISHAY |
| Part Number |
IFCL5050HZER681M |
| Quantity |
Each |
| Technical Data Sheet (49.00B) EN |
View or download |
