Product Overview

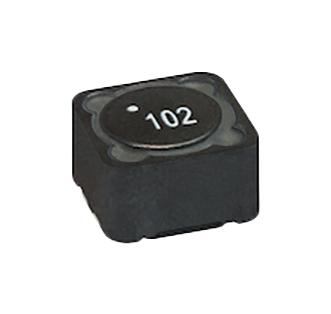

VISHAY IFCL3030DEER4R7N Coupled Inductor, 4.7 µH, 0.0354 ohm, 3.3 A Irms, 4.4 A Isat, 7.3 mm x 7.3 mm x 4.5mm
Product details
| Product Range |
IFCL-3030DE Series |
| RMS Current, Parallel |
3.3A |
| DC Resistance Max, Parallel |
0.0354ohm |
| Turns Ratio |
- |
| Product Width |
7.3mm |
| Inductor Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Inductance, Parallel |
4.7µH |
| Saturation Current, Parallel |
4.4A |
| Leakage Inductance |
- |
| Product Length |
7.3mm |
| Product Height |
4.5mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
VISHAY |
| Part Number |
IFCL3030DEER4R7N |
| Quantity |
Each |
| Technical Data Sheet (49.00B) EN |
View or download |
