Product Overview

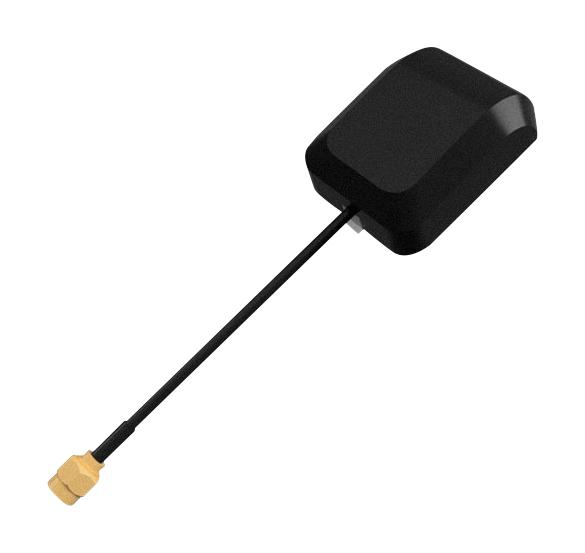

ABRACON AANE-AP-0172-1 External Antenna, Low Profile, Right Hand Circular, 1.59806 to 1.60931GHz, BeiDou/Galileo/Glonass
Product details
| Antenna Band |
L-Band |
| Frequency Range |
1.17645GHz, 1.202025GHz, 1.2276GHz, 1.24293 to 1.25168GHz, 1.57542GHz, 1.59806 to 1.60931GHz |
| Gain |
3.1dBic, 3.6dBic, 2.8dBic |
| Product Range |
AANE-AP-0172 Series |
| Antenna Case / Package |
49mm x 37mm x 16.95mm |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Antenna Type |
BeiDou, Galileo, Glonass, GPS, QZSS |
| VSWR |
2 |
| Antenna Mounting |
Magnetic |
| Protocol |
BeiDou, Galileo, Glonass, GPS, QZSS |
| Operating Temperature Min |
-40°C |
| Antenna Polarisation |
Right Hand Circular |
Other details
| Brand |
ABRACON |
| Part Number |
AANE-AP-0172-1 |
| Quantity |
Each |
| Technical Data Sheet (47.00B) EN |
View or download |
