Product Overview

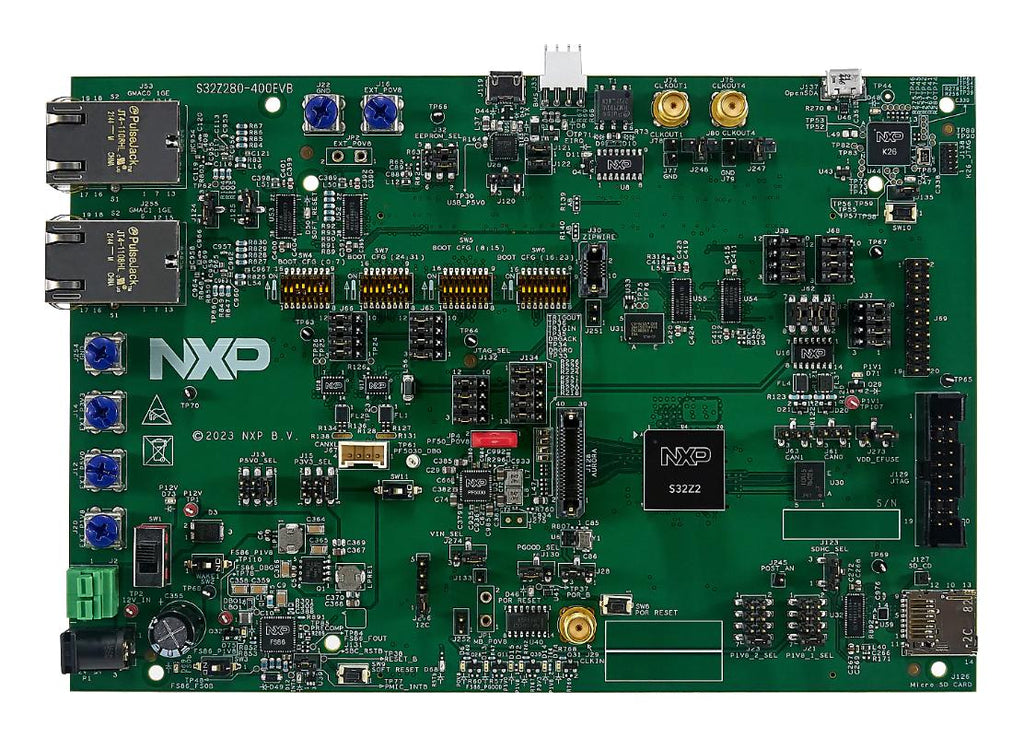

S32Z280-400EVB is an evaluation board for the S32Z2 family of safe and secure high-performance real-time processors. It provides a platform to accelerate the integration of diverse, real-time applications including safety processing and domain and zonal control. Based on a production-grade 16 nm S32Z280 processor in the 400 MAPBGA package that combines real-time and DSP/ML processing with hardware virtualization power management devices, multiple clocks, boot, I/O and external memory options, GB Ethernet, CAN FD, UART and SPI interfaces, and JTAG/Aurora debug support. The S32Z280-400EVB is enabled with the GreenVIP vehicle integration platform software that integrates NXP standard and reference design software, along with open source and third-party software to support evaluation, development and rapid prototyping.
- Battery communication ICs:MC33664: isolated network high-speed transceiver
- 12V, 24V, 48V SBC solutions: FS86: safety system basis chip for domain controller, Fit For ASIL B, D
- 5V PMIC solutions: PF5030: multi-channel PMIC for automotive applications
- CAN with flexible data rate: TJA144x: automotive CAN FD transceiver family
- Power: +12V power connector
- Interfaces: 2x 1Gbps Ethernet, 2x CAN-FD, 2x CAN-XL, 1x LIN, 1x SPI, 1x HyperFlash, 1x Serial Flash
- Interfaces: 1xSDHC, 1xserial flash, 1xEEPROM, 1xZipwire, 1xBMS interface, 1xAurora trace, 1xJTAG
Product details
| Silicon Manufacturer |
NXP |
| Silicon Family Name |
S32Z2 |
| Core Sub-Architecture |
Cortex-R52 |
| Kit Contents |
Evaluation Board S32Z2, 12V Power Supply w/Universal Adapters, Board Standoffs |
| SVHC |
No SVHC (21-Jan-2025) |
| No. of Bits |
32bit |
| Core Architecture |
ARM |
| Silicon Core Number |
S32Z280 |
| Product Range |
- |
Other details
| Brand |
NXP |
| Part Number |
S32Z280-400EVB |
| Quantity |
Each |
