| ₹ 183977.42 includes GST and import duties. | |
| B2B customers can avail ₹ 28056.56 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

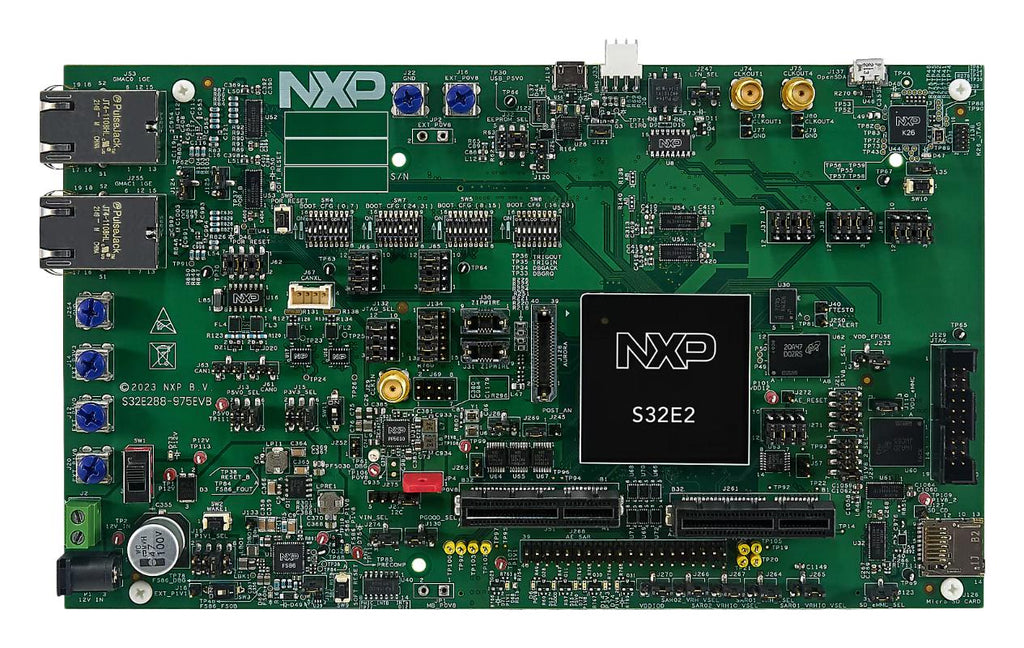

S32E288-975EVB is an evaluation board for the S32E2 family of safe and secure, high-performance real-time processors. It provides a platform to accelerate the integration of diverse, real-time applications to support electric vehicle (xEV) control and smart actuation. Based on a production-grade S32E288 processor that combines real-time and DSP/ML processing with hardware virtualization, 32MB of octal QSPI flash, power management devices, multiple clocks, boot, I/O and external memory options, Gb Ethernet, CAN FD, UART and SPI interfaces, and JTAG/Aurora debug support. The S32E288-975EVB is enabled with the GreenVIP vehicle integration platform software that integrates NXP standard and reference design software, along with open source and third-party software to support evaluation, development and rapid prototyping.
- Battery communication ICs:MC33664: isolated network high-speed transceiver
- 12V, 24V, 48V SBC solutions: FS86: safety system basis chip for domain controller, Fit For ASIL B, D
- 5V PMIC solutions: PF5030: multi-channel PMIC for automotive applications
- CAN with flexible data rate: TJA144x: automotive CAN FD transceiver family
- Power: +12V power connector
- Interfaces: 2x 1Gbps Ethernet, 1x LIN, 1x HyperFlash, 2x CAN-FD, 2x CAN-XL, 1x LPDDR4 DRAM
- Interfaces: 1x SDHC, 1x serial flash, 1x EEPROM, 2x Zipwire, 1x BMS interface, 1x SPI
Contents
NXP S32E288-975EVB evaluation board, 12V power supply with universal adapters, Board standoffs.
Product details
| Silicon Manufacturer | NXP |
| Silicon Family Name | S32E2 |
| Core Sub-Architecture | Cortex-R52 |
| Kit Contents | Evaluation Board S32E2, 12V Power Supply w/Universal Adapters, Board Standoffs |
| SVHC | No SVHC (21-Jan-2025) |
| No. of Bits | 32bit |
| Core Architecture | ARM |
| Silicon Core Number | S32E288 |
| Product Range | - |
Other details
| Brand | NXP |
| Part Number | S32E288-975EVB |
| Quantity | Each |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 180297.87 |
| 3-5 | ₹ 178458.1 |
| 5-10 | ₹ 174778.55 |
| 10+ | ₹ 171099.0 |
Bulk discount will be automatically applied during checkout based on quantity.
