Product Overview
DSPIC33AK512MC206-I/M7 is a high-performance dsPIC33A digital signal controller.
- 32bit wide data paths, single and double precision floating-point unit (FPU) coprocessor
- 2kbyte instruction cache, sixteen 32bit working registers
- Dual 72bit accumulators supporting 32bit and 16bit fixed-point DSP operations
- 8 level deep working register sets/accumulator register sets/floating-point register sets
- 128-bit unique device serial number for identification (UUID)
- Serial encoder interface BiSS with up to four client encoders support
- IEEE® standard 1149.2 compatible (JTAG) boundary scan
- 512Kbytes program memory, 64Kbytes data memory
- Industrial temperature range from -40°C to +85°C

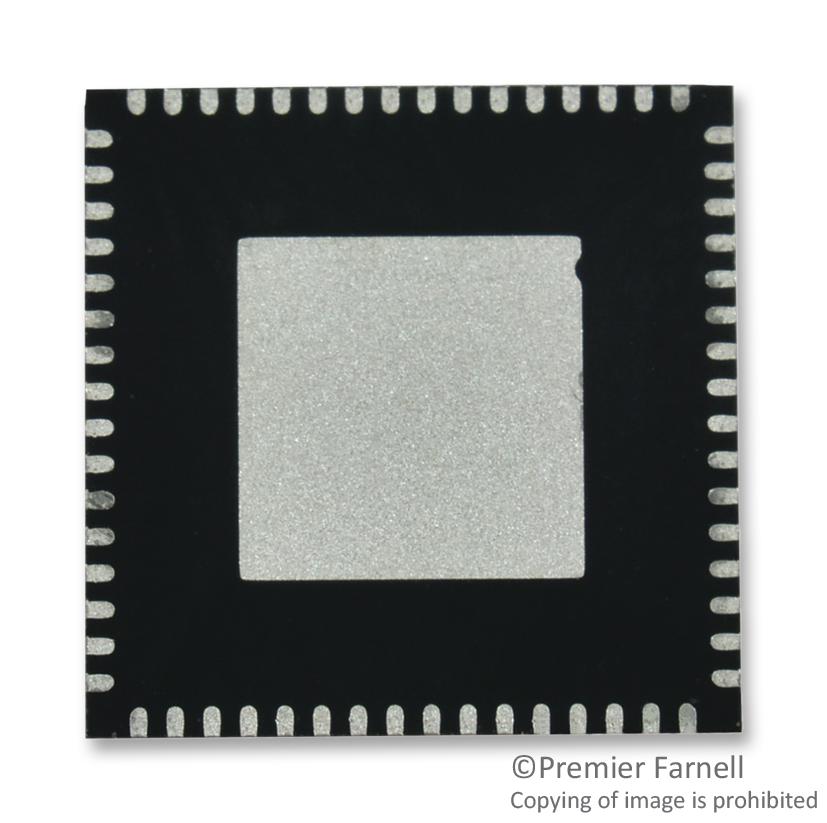

- 64-pin VQFN package
Product details
| Product Range |
dsPIC33A Series |
| Flash Memory Size |
512KB |
| Embedded Interface Type |
CLC, I2C, PTG, QEI, SENT, SPI, UART |
| DSC Case Style |
WFVQFN-EP |
| Supply Voltage Min |
3V |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
AEC-Q100 |
| Core Frequency |
200MHz |
| No. of I/O's |
45I/O's |
| Core Supply Voltage |
1.1V |
| No. of Pins |
64Pins |
| Supply Voltage Max |
3.6V |
| Operating Temperature Max |
85°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MICROCHIP |
| Part Number |
DSPIC33AK512MC206-I/M7 |
| Quantity |
Each |
| Technical Data Sheet (144.00B) EN |
View or download |
| Product Change Notice (42.96MB) EN |
View or download |
