Product Overview

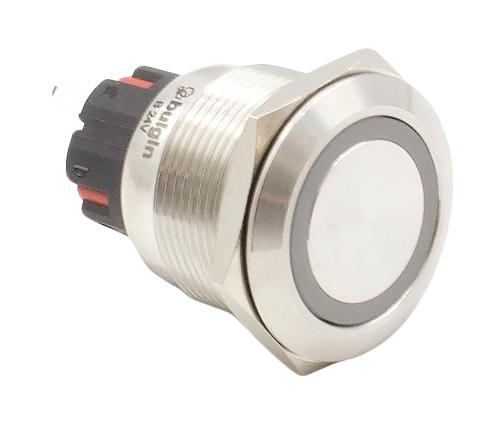

MP22DMRINRG012S5 is a MP22 series, φ22mm round, ring illuminated vandal resistant switch.
- DPDT contacts
- Momentary operation
- Stainless steel shell
- IP65 and IK09 rating
- Electrical life ≥50,000 cycles and initial contact resistance ≤50mohm
- Insulation resistance ≥100Mohm(500V DC)
- 5A, 250V switch rating and 1500VRMS power-frequency withstand voltage at 50Hz, 1min
- 2.8X0.5mm pin terminal and operating temperature range from -25°C to 55°C
- Green LED colour
- 12V LED voltage
Product details
| Product Range |
MP22 Series |
| Contact Configuration |
DPDT |
| Pushbutton Actuator Style |
Round |
| Contact Current AC Max |
5A |
| Contact Current DC Max |
- |
| IP Rating |
IP65 |
| Switch Terminals |
Solder Lug |
| Panel Cutout (H x W) |
- |
| Panel Cutout Diameter |
22mm |
| Switch Operation |
Momentary |
| Actuator / Cap Colour |
Natural |
| Contact Voltage VAC |
250V |
| Contact Voltage VDC |
- |
| Switch Mounting |
Panel Mount |
| Illumination Colour |
Green |
| SVHC |
No SVHC (25-Jun-2025) |
Other details
| Brand |
BULGIN LIMITED |
| Part Number |
MP22DMRINRG012S5 |
| Quantity |
Each |
| Manufacturer Catalogue (94.00B) EN |
View or download |
